Wrapped Wedge Belt – PHG SPC9500

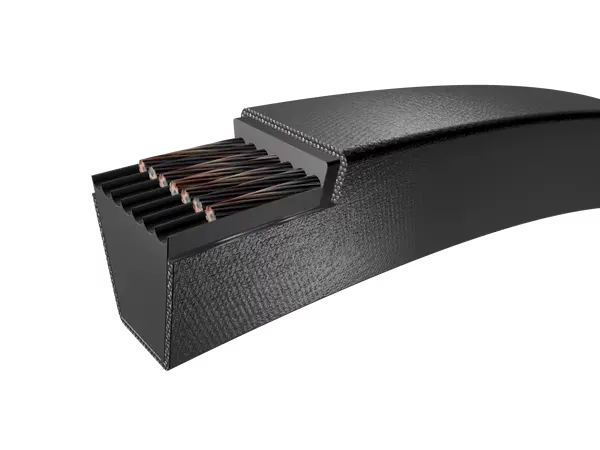

The PHG SPC9500 wrapped wedge belt is a high-performance power transmission belt designed for efficiency, durability, and reliability. With pre-tensioned polyester cords for low elongation, fibre-loaded rubber for rigidity, and a fully wrapped cover for abrasion resistance, it offers reduced energy consumption and long service life in demanding industrial applications.
Original price was: $85.21.$80.76Current price is: $80.76.
(Save $4.45)
In stock
Description
The PHG SPC9500 wrapped wedge belt provides an efficient and cost-effective solution for transmitting power from prime movers to driven machinery. Built with pre-tensioned polyester tensile cords, the belt maintains low stretch during operation, ensuring consistent performance and minimal re-tensioning. Its fibre-loaded CR (polychloroprene) rubber cushion enhances transverse rigidity, reducing heat build-up and improving operational stability.
The fully wrapped heavy-duty industrial fabric cover offers excellent abrasion resistance, while the belt’s oil- and heat-resistant properties, combined with anti-static capability, ensure reliable performance across a wide range of environments. With its SPC section profile, the PHG SPC9500 wedge belt is suitable for heavy-duty drives requiring durability, efficiency, and reduced downtime.
Specifications
| Attribute | Value |
|---|---|
| Part Number | PHG SPC9500 |
| Product Name | Wrapped wedge belt |
| Belt Type | Wedge belt |
| Section | SPC |
| Pitch Length | 9,500 mm |
| Top Width | 22 mm |
| Height | 18 mm |
| Material | CR (polychloroprene) |
| Tensile Cord | Polyester |
| Cogged | No |
| Wrapped Cover | Yes |
| Oil and Heat Resistance | Yes |
| Anti-static Properties | Yes |
| Product Net Weight | 2.99 kg |
| eClass Code | 23-17-02-90 |
| UNSPSC Code | 26111504 |
Additional information
| Weight | 2.99 kg |
|---|---|
| Dimensions | 9500 × 22 × 18 mm |
