Description

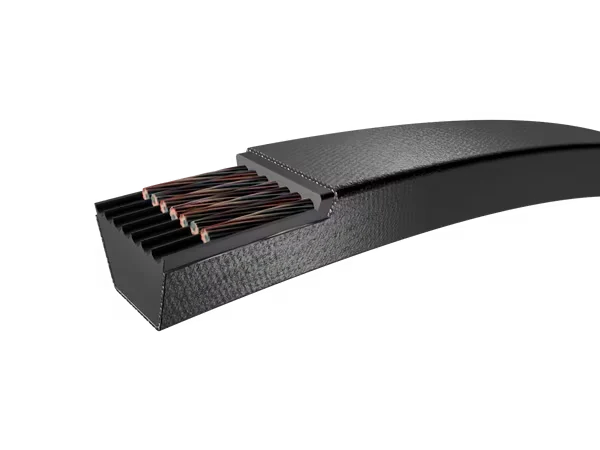

The PHG C70 is a robust wrapped classical V-belt designed for efficient and cost-effective power transmission between prime movers and driven machines. Its pre-tensioned polyester cords provide excellent dimensional stability, limiting stretch during operation and reducing the need for frequent re-tensioning. The fibre-reinforced CR (polychloroprene) cushion enhances transverse rigidity, minimizing heat build-up and improving reliability under heavy load conditions.
A heavy-duty industrial fabric wrap protects the belt from abrasion, extending operational life even in harsh environments. With inherent oil- and heat-resistant properties as well as anti-static characteristics, the PHG C70 is suited to a wide range of applications. Its classical C-section profile ensures compatibility with standard drives while delivering reduced energy consumption and extended maintenance intervals.
Specifications
| Attribute | Value |
|---|---|
| Part Number | PHG C70 |
| Product Name | Wrapped classical V-belt |
| Belt Type | Classical V-belt |
| Section | C |
| Inner Length | 1,778 mm |
| Pitch Length | 1,830 mm |
| Top Width | 22 mm |
| Height | 14 mm |
| Material | CR (polychloroprene) |
| Tensile Cord | Polyester |
| Cogged | No |
| Wrapped Cover | Yes |
| Oil and Heat Resistance | Yes |
| Anti-static Properties | Yes |
| Product Net Weight | 0.5 kg |
| eClass Code | 23-17-02-90 |
| UNSPSC Code | 26111504 |
