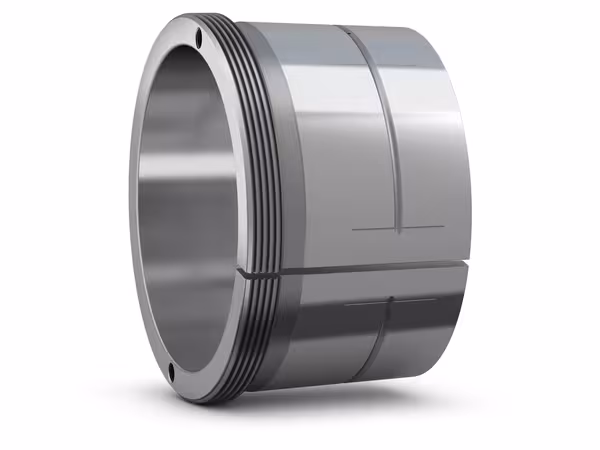

Withdrawal Sleeve – AOH 3164 G
The AOH 3164 G withdrawal sleeve is a slit tapered sleeve designed for mounting bearings with a tapered bore onto cylindrical stepped shafts. Manufactured to ISO standards, it features oil injection holes for controlled mounting and dismounting, reducing manual effort while improving operator safety and reliability.
Original price was: $1 990.33.$1 886.26Current price is: $1 886.26.
(Save $104.07)
In stock
Description
Withdrawal sleeves are essential components used to facilitate the secure mounting and dismounting of bearings with tapered bores. The AOH 3164 G is designed to fit stepped shafts, enabling bearings to be located using a lock nut or an end plate (end plates not manufactured by SKF).
This sleeve features a tapered 1:12 design and includes holes for oil injection, which ensures precise, controlled mounting and dismounting. The oil injection system minimizes manual effort, improves safety, and helps protect both the shaft and the bearing during installation or removal.
By adhering to ISO standards, the AOH 3164 G guarantees compatibility and reliable performance across a wide range of applications. Its robust construction provides long service life and cost-effective shaft and bearing management. Lock nuts and locking devices can be ordered separately to complete the assembly.
Specifications
| Feature | Details |
|---|---|
| Part number | AOH 3164 G |
| Weight | 21.4 kg |
| Type | Withdrawal sleeve |
| Bore diameter | 300 mm |
| Width | 209 mm |
| Thread designation | Tr 340×5 |
| Taper | 1:12 |
| Holes for oil injection | With |
| Locking method | Lock nut or end plate (end plates not manufactured by SKF) |
| Unit system | Metric |
| Standards | ISO |
| Carbon footprint (indicative) | N/A |
| eClass code | 23-11-07-05 |
| UNSPSC code | 31163218 |
Additional information
| Weight | 21.4 kg |
|---|
