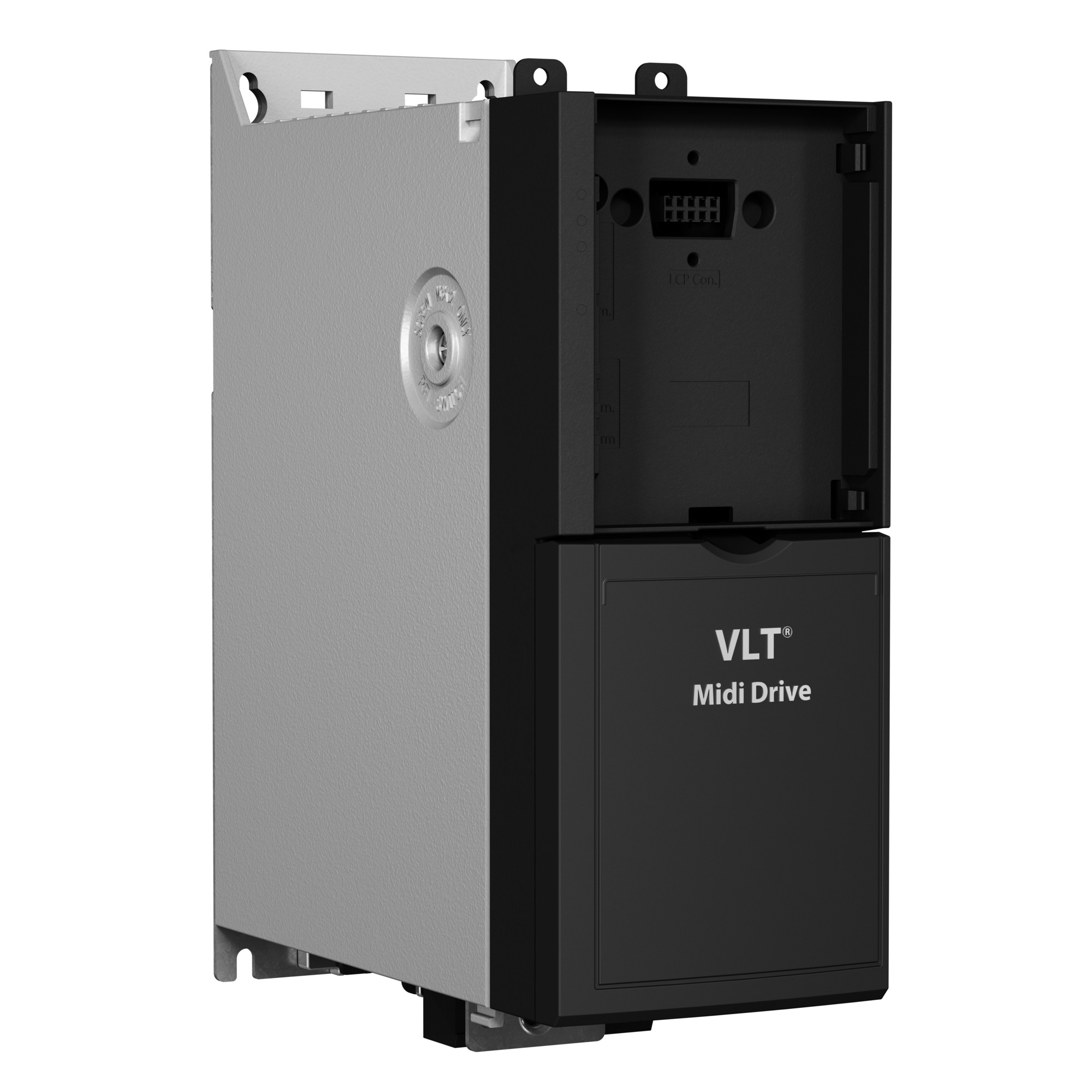

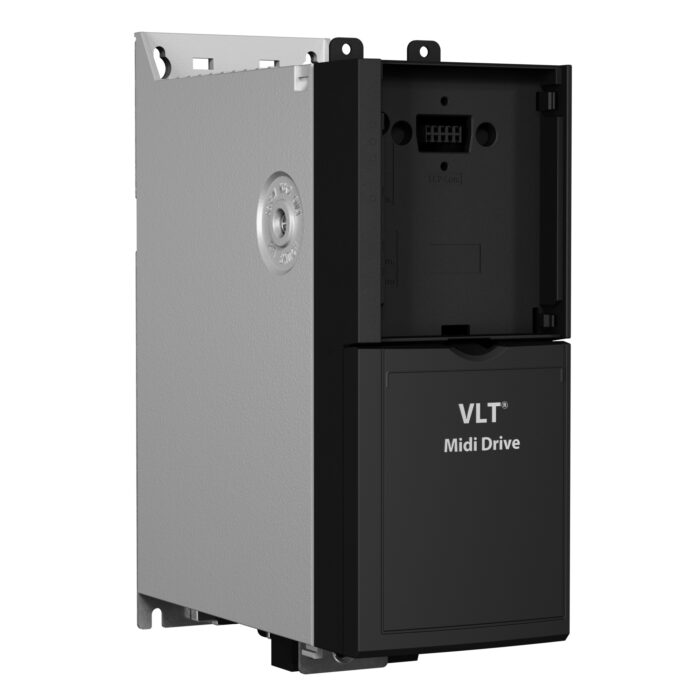

VLT® Midi Drive FC-280 – 134U3014

The VLT® Midi Drive FC-280 (134U3014) is a high-performance frequency converter engineered for precise and efficient motor control in industrial settings. Delivering 5.5 kW (7.5 HP) of power, this unit is built for robust operation in demanding environments, with three-phase 380–480 VAC input capability.

Housed in an IP20 chassis, the FC-280 features a built-in brake chopper for enhanced motor braking response and an EMC Category C3 filter for superior electromagnetic compatibility. Its coated PCB offers protection against moisture and contaminants, ensuring longer product life. With integrated Modbus support, it allows seamless connectivity with control systems, making it ideal for automated and networked environments.

Please note: The drive does not include a Local Control Panel (LCP) or memory module—both are available as optional accessories. Mounting adapter plates for upgrading from VLT2800 models are also available separately.

Specifications

• Product Name: VLT® Midi Drive FC-280

• Model Code: FC-280P5K5T4E20H2BXCXXXSXXXXAX

• Item Number: 134U3014

• Power Rating: 5.5 kW / 7.5 HP

• Voltage Range: Three-phase 380–480 VAC

• Enclosure: IP20 / Chassis mount

• EMC Filter: Category C3 (200/400V compliant)

• Brake Chopper: Included

• PCB Coating: Yes (coated for environmental resistance)

• Communication Protocol: Modbus (standard)

• Continuous Current (HO): 12 A

• Intermittent Current (HO): 19.2 A

• Power Loss (HO): 157.5 W

• Apparent Power: 8.3 kVA

• Dimensions (H x W x D): 272.5 mm x 90.0 mm x 168.0 mm

• Net Weight: 3.89 kg

• Gross Weight: 4.41 kg
