Description

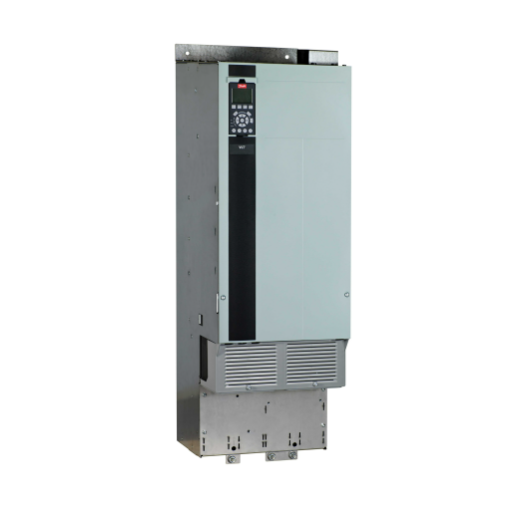

The Danfoss VLT AutomationDrive FC-302 (Model: FC-302N110T5E20H2BGC) is a high-performance frequency converter designed for demanding industrial applications requiring precise motor control, energy efficiency, and long-term reliability.
Rated at 110 kW (150 HP) and operating on a three-phase 380–500 VAC supply, this drive is engineered to handle heavy-duty processes across industries such as manufacturing, material handling, conveyors, pumps, compressors, and process automation. The FC-302 series is known for its flexibility, robustness, and advanced motor control capabilities.
This unit features an IP20 (chassis) enclosure, integrated RFI filter, and brake chopper, enabling effective electromagnetic compatibility and controlled deceleration in dynamic applications. The included graphical local control panel (LCP) provides intuitive setup, monitoring, and diagnostics, simplifying commissioning and maintenance.
Designed under the VLT AutomationDrive FC- series, this frequency converter supports global standards and is suitable for both new installations and system upgrades where performance and reliability are critical.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Danfoss |
| Product Type | Frequency Converter |
| Product Group | VLT® AutomationDrive FC- |
| Series | FC-302 |
| Model Code | FC-302N110T5E20H2BGCXXXSXXXXAXBXCXXXXDX |
| Part Number | 134F4144 |
| EAN | 5710107439942 |
| Power Rating | 110 kW / 150 HP |
| Phase | Three Phase |
| Mains Voltage | 380 – 500 VAC |
| Enclosure | IP20 / Chassis |
| RFI Filter | Integrated (H2) |
| Brake Chopper | Included |
| Control Panel | Graphical Local Control Panel (LCP) |
| Product View | Global (Standard) |
| Net Weight | 70 kg |
| Gross Weight | 75 kg |
