Description

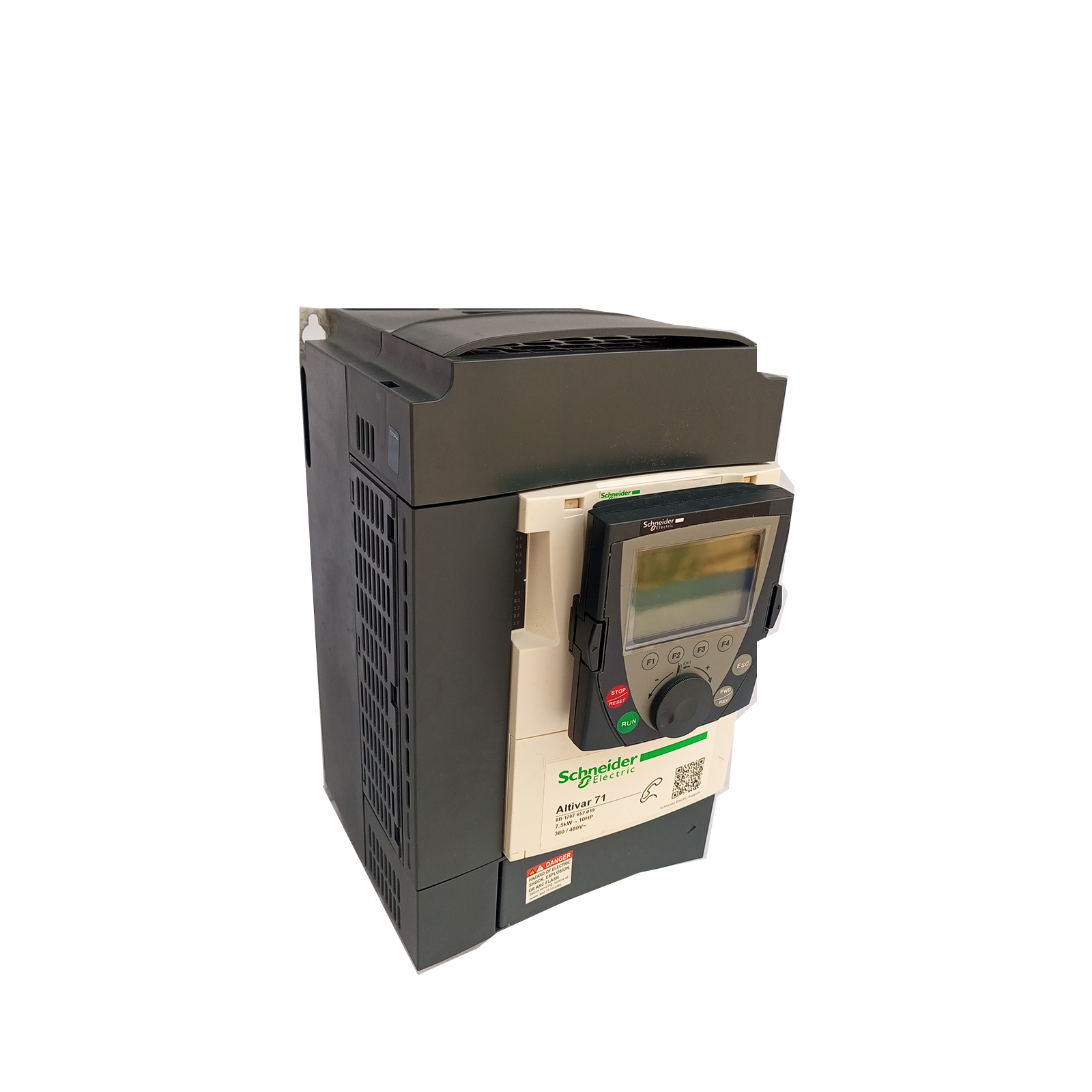

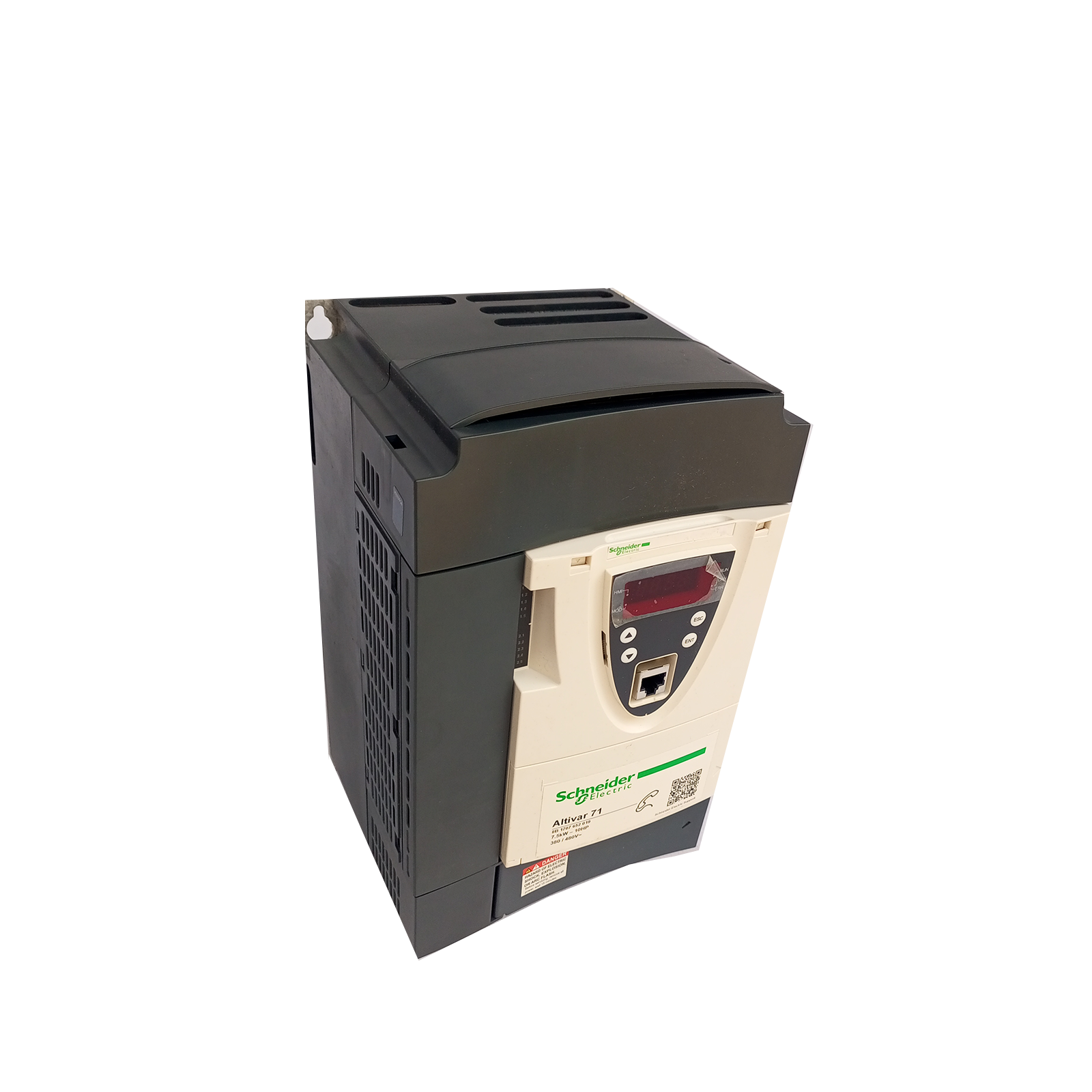

The Schneider Electric Altivar 71 (ATV71) Variable Speed Drive is a high-performance drive designed for complex, high-power machinery. It ensures superior motor control with advanced features like Flux Vector Control (FVC) with sensor, Sensorless Flux Vector Control (SFVC), and Voltage/Frequency ratio modes, making it suitable for both asynchronous and synchronous motors. The integrated EMC filter, adjustable switching frequency (1-16 kHz), and built-in braking features provide efficiency, adaptability, and safety.
Key Specifications:
- Motor Power: 7.5 kW (10 HP)
- Voltage: 380-480V (-15% to +10%)
- Phase: 3-phase
- Maximum Motor Cable Length: 50m (shielded) / 100m (unshielded)
- Line Current: 22.2A (480V), 27A (380V)
- Output Frequency: 0.1-599 Hz
- Control Modes: FVC, SFVC, Voltage/Frequency ratio
- Speed Accuracy: ±0.01% (closed-loop), ±10% (open-loop)
- Braking Torque: Up to 150% with braking resistor
- Communication Ports: Modbus, CANopen (RJ45, SUB-D 9)
- Protection Features: Overvoltage, overcurrent, short circuit, thermal protection
- Dimensions: H: 295mm, W: 175mm, D: 187mm
- Weight: 5.5 kg
