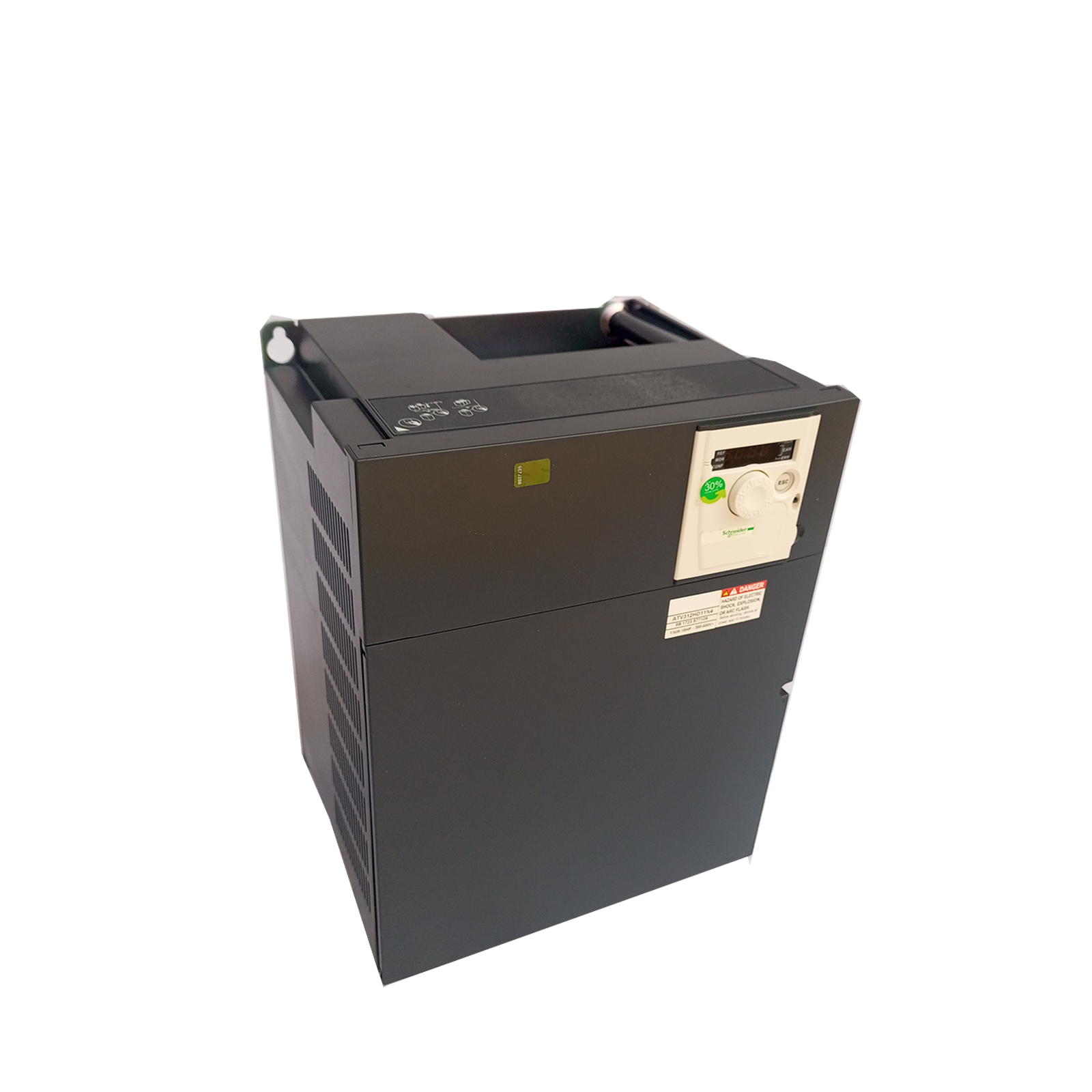

Variable speed drive – ATV312HD11N4

The Altivar 312 is a high-performance 3-phase variable speed drive with an 11kW power rating, suitable for various industrial applications, including material handling, packaging, textiles, and pumps. It operates within a 380V to 500V AC range and features an integrated EMC filter for optimized motor control. The compact design (245mm width) allows for flexible installation, while its LED display and jog dial navigation ensure ease of use.

With built-in Modbus and CANopen communication protocols, this drive enables seamless integration into automated systems. It also supports SoMove software for easy configuration and maintenance, reducing downtime. Designed for reliability, the Altivar 312 includes multiple protection mechanisms, such as overheating, short circuit, and overcurrent safeguards. Certified with CE, UL, and CSA standards, it meets stringent industrial requirements, making it a robust solution for demanding environments.

Specifications

Product Name: Altivar 312 Variable Speed Drive – 11kW, 3-Phase, 380-500V AC

Brand: Schneider Electric
Model: ATV312
Power Rating: 11kW (15 HP)
Input Voltage: 380-500V AC (±10%)
Phase Type: 3-Phase
Frequency: 50/60 Hz
Output Current: 27.7A at 4kHz
Control Type: Sensorless Flux Vector Control, PWM Signal
Speed Range: 1 to 50
Integrated EMC Filter: Yes
Communication Protocols: Modbus, CANopen
Display Type: 4-digit LED Display
Protection Rating: IP20/IP21/IP31/IP41
Installation: Compact 245mm width, Mounting Plate Compatible
Braking Torque: Up to 150% with braking resistor
Certifications: CE, UL, CSA, NOM, C-Tick, GOST, DNV
Software Compatibility: SoMove for easy configuration and maintenance
Dimensions (HxWxD): 329.5 x 245 x 192 mm
Weight: 11 kg
Warranty: 18 Months
