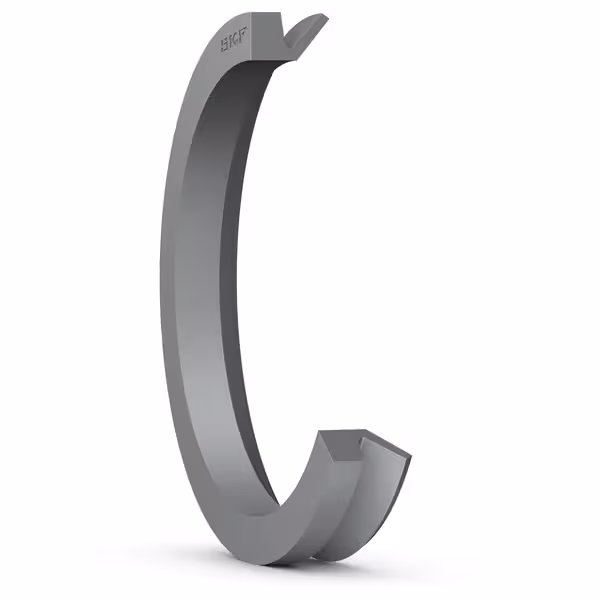

V-Ring Seal – 55 VA R

(0 Reviews) Write a review

The 55 VA R V-ring seal is an all-rubber axial shaft seal designed for reliable contamination exclusion in rotating shaft applications. With its VA design (straight back side face), it is the most common type of V-ring, offering easy installation, cost-effectiveness, and compatibility with VR1 designs.

Original price was: $0.72.Current price is: $0.69.

(Save $0.03)
In stock
Buy now

Description

V-ring seals (V-rings) are versatile all-rubber axial shaft seals widely used as secondary seals in highly contaminated environments. The 55 VA R model features the VA design, which includes a standard cross section and straight back side face, making it the most common and widely applicable variant.

These seals are particularly effective in protecting bearing arrangements in gearboxes, electric motors, and drives. Their all-rubber construction ensures excellent flexibility, easy installation, and reliable exclusion of dirt, dust, and other contaminants.

Cost-effective and globally standardized, the 55 VA R is interchangeable with VR1 designs. If not available from stock, alternatives can be manufactured quickly using SKF SEAL JET systems, ensuring minimal downtime and maximum availability.

Specifications
Feature Details
Part number 55 VA R
Weight 0.0082 kg
Seal type V-ring seal
Design VA
Shaft diameter (min.) 53 mm
Shaft diameter (max.) 58 mm
Seal width 9 mm
Sealing lip material Nitrile rubber (NBR)
Unit system Metric
Compatibility Interchangeable with VR1 design
Carbon footprint (indicative) N/A
eClass code 23-07-08-01
UNSPSC code 31181602

Additional information

Weight 0.0082 kg
