Description

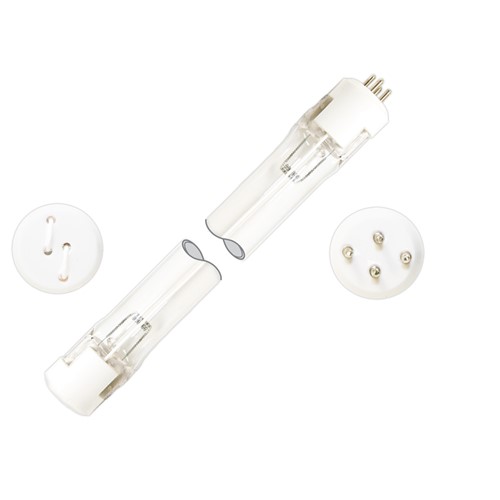

The UVL-WLR20 bactericidal UV lamp is engineered for use in water disinfection systems, fully compatible as a replacement for Wedeco WLR 20 models (WLR 20, WLR20, WLR-20). Manufactured with an advanced UVL-LivePower+ inner surface coating, this lamp prevents rapid power degradation in UV output, significantly increasing its operational lifespan and maintaining disinfection efficiency over time.
Built with ozone-free quartz and amalgam technology, the lamp operates at 254 nm wavelength, the optimum range for bacterial and viral inactivation in water treatment processes. Its durable construction includes precision quartz sleeves and power supply compatibility, ensuring stable performance in demanding applications.
The UVL-WLR20 is suitable for a wide range of industrial, municipal, and commercial water treatment systems, offering long service life and reliable output for continuous disinfection needs.
Specifications
| Category | Details |
|---|---|
| Part Number | UVL-WLR20 |
| Alternative Markings | Wedeco WLR 20, WLR20, WLR-20 |
| Type | Ozone-free quartz amalgam low-pressure UV lamp |
| Wavelength Range | 254 nm |
| Wattage | 210 W |
| Operating Current | 3 A |
| UVC Output Power | 81 W |
| Total Length | 1215 mm |
| Arc Length | 1120 mm |
| Lamp Quartz Diameter | 25 mm |
| Base Diameter | 28 mm |
| Rated Life | 16,000 hours |
| Applications | Water disinfection, water treatment systems |
