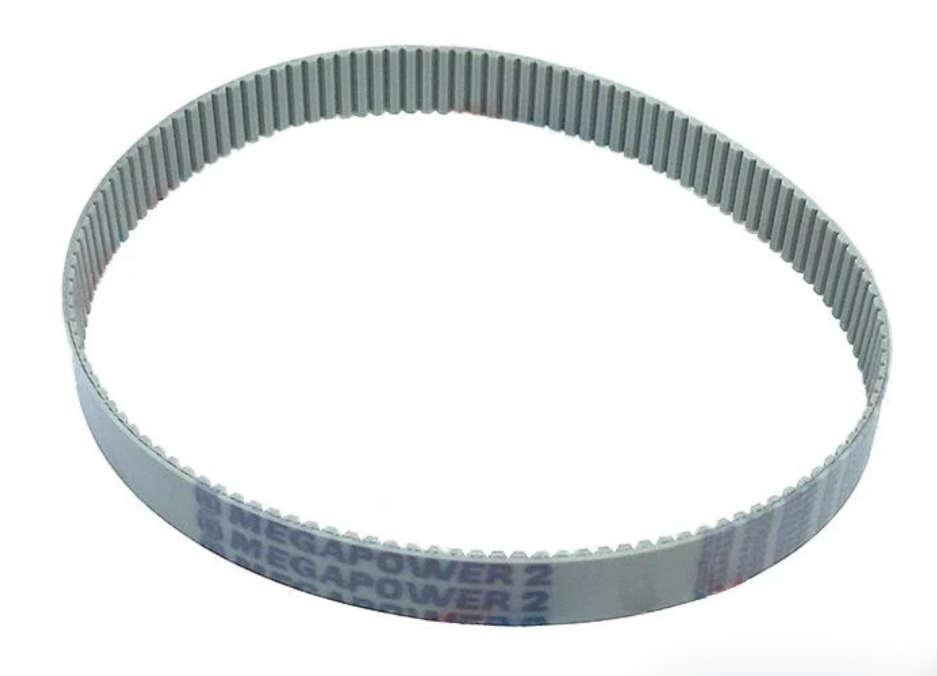

Timing Belt – AT5-500
The Megadyne MEGAPOWER 2 AT5-500 timing belt is a high-performance polyurethane endless belt with helically wound steel cords. With a 500 mm length, 50 mm width, 5 mm pitch, and 100 teeth, it delivers superior power transmission, dimensional stability, and precision for motion control and positioning applications.
Original price was: $3.13.$2.96Current price is: $2.96.
(Save $0.17)
In stock
Description
The MEGAPOWER 2 AT5-500 is part of Megadyne’s new generation of thermoset polyurethane timing belts, engineered to outperform the first generation by up to 30% higher performance. Manufactured using an advanced molding process, the belt offers superior dynamic performance, higher transmittable power, and excellent dimensional stability.
The belt body is made of grey/green thermoset polyurethane (88 ShA hardness), providing resistance against wear, abrasion, and shock loads encountered in demanding stop/start cycles. Reinforced with high-strength helically wound zinc-coated steel cords, it ensures extremely low elongation and high tensile strength, while also being available with Kevlar, fiberglass, stainless steel, HP, HF, or HPF cords for specialized applications.
With its precise AT5 pitch and endless construction, the MEGAPOWER 2 ensures smooth, slip-free operation at linear speeds up to 20 m/s, making it suitable for both power transmission and motion control systems where accuracy and reliability are critical.
Specifications
| Category | Details |
|---|---|
| Part Number | AT5-500 |
| Brand | Megadyne |
| Type | Endless polyurethane timing belt |
| Model | MEGAPOWER 2 |
| Belt Material | Thermoset polyurethane, 88 ShA hardness |
| Tensile Members | Helically wound zinc-coated steel cords (optional: Kevlar, fiberglass, stainless steel, HP, HF, HPF) |
| Belt Length | 500 mm |
| Belt Pitch | AT5 (5 mm) |
| Belt Width | 50 mm |
| Number of Teeth | 100 |
| Linear Speed | Up to 20 m/s |
| Operating Temperature | -25 °C to +80 °C |
| Mechanical Properties | High tensile strength, low elongation, excellent dimensional stability |
| Chemical Resistance | Resistant to wear, abrasion, oils, aging, and shock loads |
| Properties | Slip-free transmission, precise positioning, stop/start cycle resistance |
| Applications | Power transmission, motion control, positioning systems, automation |
Additional information
| Weight | .50 kg |
|---|
