Description

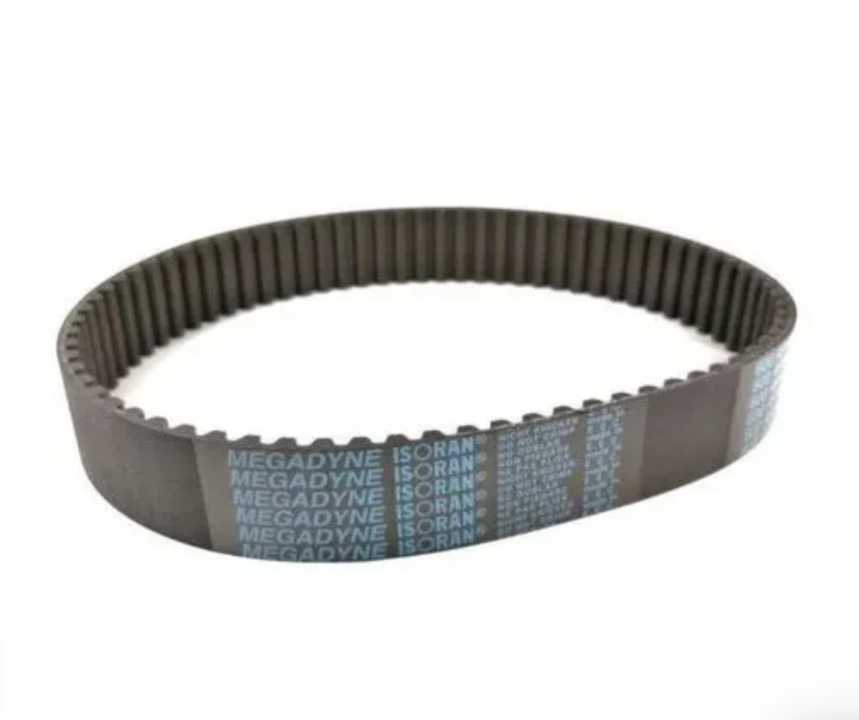

The Megadyne 180-XL-037 belongs to the Isoran RPP and RPP DD range of transmission belts. Manufactured from high-grade chloroprene rubber reinforced with continuous helically wound fiberglass cords, this belt is engineered for a wide range of industrial applications requiring consistent torque transmission and long service life.
Its parabolic tooth profile features a progressive angle that provides taller teeth within the same pitch length, delivering smoother engagement and better meshing with pulleys. The top groove minimizes wear and extends operational efficiency, making it superior to conventional Imperial pitch belts.
The belt’s construction includes a wear-resistant nylon fabric covering the teeth surface, offering self-lubricating properties and reducing friction during operation. Operating effectively in a temperature range of -25°C to +80°C, the 180-XL-037 provides enhanced resistance to tooth jump, tooth shear, and wear.
Applications include power transmission systems in machinery, automation, and industrial drive units, where low noise, high torque capacity, and long belt life are critical.
Specifications
| Category | Details |
|---|---|
| Part Number | 180-XL-037 |
| Brand | Megadyne |
| Series | Isoran RPP / RPP DD |
| Category | Timing belt |
| Belt Type | Imperial pitch |
| Pitch | XL (1/5″) |
| Belt Width | 9.3 mm (3/8″) |
| Belt Length | 457.2 mm (18 in) |
| Number of Teeth | 90 |
| Material | Chloroprene rubber |
| Cord Material | Fiberglass |
| Tooth Cover | Nylon fabric |
| Hardness | 74 ShA |
| Operating Temperature | -25°C to +80°C |
| Features | Reduced noise, low pre-tension, high torque capacity, improved tooth engagement, wear resistance |
