Description

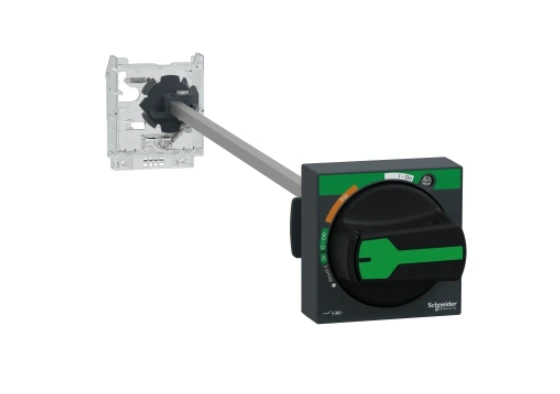

The GV2APN01 is an extended rotary handle kit from Schneider Electric, specifically designed for external operation of TeSys GV2L and GV2P motor circuit breakers housed inside an enclosure. Ideal for main switch applications, the unit features a black rotary handle on a grey front plate, clearly marked with OFF, ON, and TRIP positions.
The handle is door-mounted and offers an IP54 protection rating, making it suitable for harsh industrial environments. It includes a mounting adapter for the breaker face and an adjustable extension shaft (suitable for enclosure depths ranging from 146 mm to 256 mm).
The handle can be padlocked in either OFF or ON position using up to 3 padlocks (not included). While locking in the ON position does not prevent tripping, unlocking is required to reset the breaker. This ensures both operational safety and convenient control access.
Specifications
| Specification | Details |
|---|---|
| Model | GV2APN01 |
| Brand | Schneider Electric |
| Product Type | Extended Rotary Handle Kit |
| Compatibility | TeSys GV2L and GV2P Motor Circuit Breakers |
| Mounting Type | Door-mounted |
| Handle Color | Black (on Grey Plate) |
| Indication Positions | OFF, ON, TRIP |
| Protection Rating | IP54 |
| Extension Shaft Length | Adjustable (146–256 mm) |
| Padlockable | Yes – Up to 3 Padlocks (OFF/ON) |
| Trip Reset Requirement | Unlocking required after trip |
| Environmental Compliance | RoHS, REACH – Green Premium™ |
| Net Weight | 0.3 kg |
| Typical Application | External motor breaker control in enclosures |
