Description

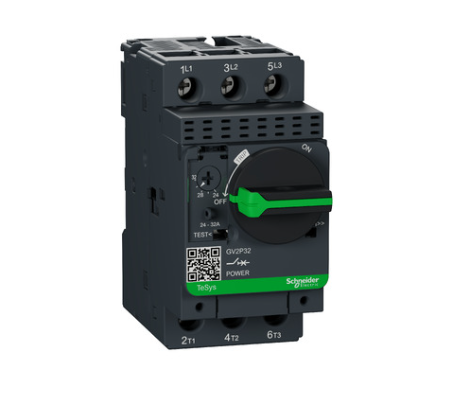

The Schneider Electric GV2P32 TeSys Deca motor circuit breaker is a robust and reliable protection device designed for 3-phase motor applications. Rated at 32A and suitable for motors up to 15 kW at 400V, it combines thermal and magnetic protection to safeguard equipment against overloads and short circuits.
The adjustable thermal setting range of 24 to 32A allows precise protection tuning, while the magnetic trip function (13x In) ensures rapid response to fault conditions. With a high breaking capacity of 50 kA at 400V, this circuit breaker is suitable for demanding industrial environments.
Featuring a rotary handle for start-stop control, the GV2P32 is built for durability with up to 100,000 operating cycles (AC-3). The screw clamp terminals provide secure and straightforward connections, simplifying installation and maintenance.
Compliant with multiple international standards including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, and aligned with Green Premium (RoHS/REACH) requirements, this motor circuit breaker is a dependable and globally accepted solution for motor protection and control.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Motor Circuit Breaker |
| Model | GV2P32 |
| Series | TeSys Deca |
| Brand | Schneider Electric |
| Number of Poles | 3P |
| Rated Current | 32 A |
| Thermal Setting Range | 24 – 32 A |
| Rated Voltage | Up to 690 V |
| Motor Power Rating | 15 kW @ 400 V |
| Protection Type | Thermal-Magnetic |
| Magnetic Trip Setting | 13 × In |
| Breaking Capacity (Icu) | 50 kA @ 400 V |
| Control Type | Rotary Handle (Start/Stop) |
| Electrical Durability | 100,000 cycles (AC-3) |
| Terminal Type | Screw Clamp |
| Compliance Standards | IEC, UL, CSA, CCC, EAC, Marine, ATEX |
| Environmental Compliance | RoHS / REACH (Green Premium) |
| Net Weight | 0.329 kg |
