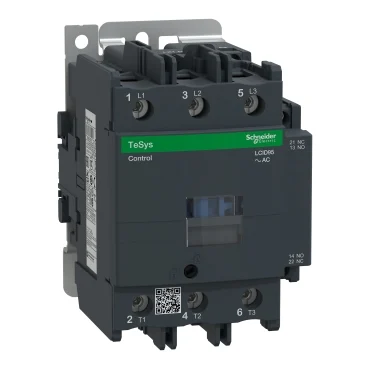

TeSys Deca Contactor – LC1D95M7
TeSys Deca LC1D95M7 3-pole contactor (3NO), 95A AC-3/AC-3e, with 220V AC coil, screw terminals for power and control, ideal for 45kW motor control.
Original price was: $145.94.$139.22Current price is: $139.22.
(Save $6.72)
In stock
Description
The TeSys Deca LC1D95M7 is a robust 3-pole (3NO) contactor engineered for motor control applications up to 95A/1000V AC-3/AC-3e or 45kW at 400V. It features a 220V AC 50/60Hz coil with 1NO + 1NC built-in auxiliary contacts, delivering both performance and safety.
Power connections are made via screw terminals, while screw clamp terminals are used for control wiring. Designed for high-frequency operation up to 3600 cycles/hour and ambient temperatures up to 60°C, this unit ensures excellent durability and consistent performance in demanding industrial environments.
Its compact 85mm width, DIN-rail or screw mounting capability, and comprehensive certifications (IEC, UL, CSA, CCC, EAC, Marine) make it highly versatile. Additionally, it is Green Premium compliant, meeting RoHS and REACH standards for environmental safety.
Specifications
| Attribute | Value |
|---|---|
| Range | TeSys Deca |
| Product Type | Contactor |
| Part Number | LC1D95M7 |
| Device Short Name | LC1D |
| Application | Motor Control, Resistive Load |
| Utilisation Category | AC-1, AC-3, AC-3e, AC-4 |
| Poles Description | 3P (3 Normally Open) |
| Rated Operational Voltage | ≤ 1000V AC |
| Rated Operational Current | 95A (AC-3/AC-3e), 45kW @ 400V |
| Control Circuit Voltage (Coil) | 220V AC 50/60Hz |
| Auxiliary Contacts | 1NO + 1NC |
| Power Connection Type | Screw Terminals |
| Control Connection Type | Screw Clamp Terminals |
| Mounting Type | DIN Rail or Screw Mounting |
| Certifications | IEC, UL, CSA, CCC, EAC, Marine |
| Environmental Compliance | Green Premium (RoHS/REACH) |
| Height | 127 mm |
| Width | 85 mm |
| Depth | 130 mm |
| Net Weight | 1.61 kg |
Additional information
| Weight | 1.61 kg |
|---|---|
| Dimensions | 130 × 85 × 127 mm |
