Description

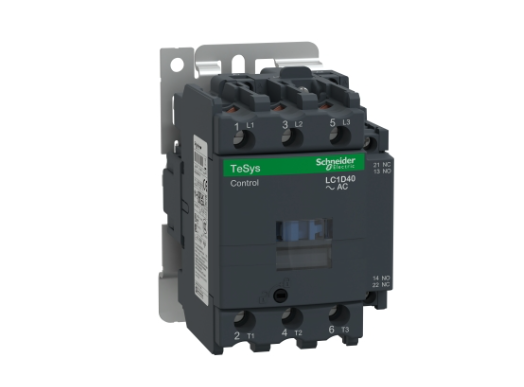

The Schneider Electric LC1D40P7 TeSys Deca contactor is a high-performance switching device engineered for motor control and industrial load applications. With a 3-pole (3NO) configuration, it is rated for 40A at up to 690V, making it suitable for controlling motors up to 30 kW at 690V (AC-3 category).
In addition to motor applications, the contactor supports non-inductive load control up to 60A at 60°C (AC-1), providing flexibility across various industrial uses. It features a 230V AC coil (50/60 Hz) and includes built-in auxiliary contacts (1NO + 1NC), enabling enhanced control and signaling capabilities.
Designed for durability and operational efficiency, the LC1D40P7 supports up to 3,600 operating cycles per hour and performs reliably in ambient temperatures up to 60°C. Its compact design (75 mm width) allows for easy integration into control panels, with flexible mounting options including DIN rail or screw fixing.
With screw clamp terminals for secure connections and compliance with multiple international standards (IEC, UL, CSA, CCC, EN), as well as Green Premium (RoHS/REACH) certification, this contactor is a dependable and globally accepted solution for industrial automation systems.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Contactor |
| Model | LC1D40P7 |
| Series | TeSys Deca |
| Brand | Schneider Electric |
| Number of Poles | 3P (3NO) |
| Rated Current (AC-3) | 40 A |
| Rated Voltage | Up to 690 V AC |
| Motor Power Rating | 30 kW @ 690 V |
| AC-1 Rating | Up to 60 A @ 60°C |
| Coil Voltage | 230 V AC (50/60 Hz) |
| Auxiliary Contacts | 1 NO + 1 NC (Built-in) |
| Maximum Operating Rate | 3600 cycles/hour |
| Mounting Type | DIN Rail / Screw Fixing |
| Terminal Type | Screw Clamp |
| Height | 127 mm |
| Width | 75 mm |
| Depth | 119 mm |
| Net Weight | 1.4 kg |
| Compliance Standards | IEC, UL, CSA, CCC, EN |
| Environmental Compliance | RoHS / REACH (Green Premium) |
