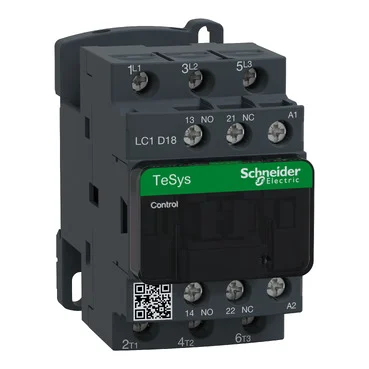

TeSys Deca Contactor – LC1D18P7
TeSys Deca 3-pole contactor (3NO), 18A AC-3/3e, with 230V AC coil and screw clamp terminals. Ideal for motor control up to 7.5kW at 400V.
Original price was: $27.57.$26.30Current price is: $26.30.
(Save $1.27)
In stock
Description
The TeSys Deca LC1D18P7 is a 3-pole (3NO) contactor designed for motor control and resistive load applications up to 18A AC-3/AC-3e (7.5kW @ 400V). It features a 230V AC 50/60Hz coil and 1NO + 1NC built-in auxiliary contacts (with NC mirror contact certification), ensuring safe and reliable operation in control systems.
This compact unit (45 mm width) supports DIN-rail or screw mounting, with durable screw clamp terminals for secure wiring. Designed for high-frequency operation, it handles up to 3600 cycles per hour in temperatures up to 60°C, offering long-lasting performance even in demanding environments.
The LC1D18P7 is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHS/REACH), combining robust functionality with environmental responsibility.
Specifications
| Attribute | Value |
|---|---|
| Range | TeSys Deca |
| Product Type | Contactor |
| Part Number | LC1D18P7 |
| Device Short Name | LC1D |
| Application | Motor Control, Resistive Load |
| Utilisation Category | AC-1, AC-3, AC-4, AC-3e |
| Poles Description | 3P (3 Normally Open) |
| Rated Operational Voltage | ≤ 690V AC / ≤ 300V DC |
| Rated Operational Current | 18A (AC-3/AC-3e) / 25A (AC-1) at ≤ 440V |
| Control Circuit Voltage (Coil) | 230V AC 50/60Hz |
| Auxiliary Contacts | 1NO + 1NC (NC mirror certified) |
| Mounting Type | DIN Rail or Screw Mounting |
| Connection Type | Screw Clamp Terminals |
| Certifications | IEC, UL, CSA, CCC, EAC, Marine |
| Environmental Compliance | Green Premium (RoHS/REACH) |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 86 mm |
| Net Weight | 0.33 kg |
Additional information
| Weight | 0.33 kg |
|---|---|
| Dimensions | 86 × 45 × 77 mm |
