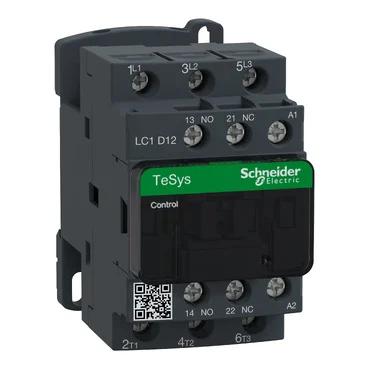

TeSys Deca Contactor – LC1D12P7
TeSys Deca 3-pole contactor (3NO) with 230V AC 50/60Hz coil, rated 12A for AC-3 motor applications up to 5.5 kW at 400V. Compact 45 mm width with screw clamp terminals.
Original price was: $20.12.$19.19Current price is: $19.19.
(Save $0.93)Description
The TeSys Deca LC1D12P7 is a 3-pole contactor designed for reliable motor control and resistive load switching in industrial and commercial applications. It is rated for up to 12 A (AC-3/AC-3e) at 440 V, supporting 3-phase motors up to 5.5 kW at 400 V.
Equipped with a 230 V AC 50/60 Hz control coil, the LC1D12P7 features 1NO + 1NC built-in auxiliary contacts (with mirror contact certification), ensuring safe and efficient circuit monitoring. The unit supports operating rates up to 3600 cycles per hour, making it ideal for frequent switching operations.
Its compact 45 mm-wide frame allows for space-saving integration in panels. Mounting is flexible via DIN rail or screw fixing, and screw clamp terminals ensure secure, straightforward wiring.
This contactor is compliant with multiple international standards (IEC, UL, CSA, CCC, EAC, Marine) and meets Green Premium environmental standards (RoHS and REACH), ensuring both performance and sustainability.
Specifications
Attribute | Value |
---|---|
Range of Product | TeSys Deca |
Product Type | Contactor |
Part Number | LC1D12P7 |
Device Short Name | LC1D |
Application | Motor Control, Resistive Load Switching |
Utilisation Category | AC-1, AC-3, AC-4, AC-3e |
Poles Description | 3P (3 Normally Open) |
Rated Operational Voltage [Ue] | ≤ 690 V AC (25–400 Hz) / ≤ 300 V DC |
Rated Operational Current [Ie] | 25 A (AC-1) / 12 A (AC-3 / AC-3e) @ ≤ 440 V |
Control Circuit Voltage [Uc] | 230 V AC 50/60 Hz |
Auxiliary Contacts | 1 NO + 1 NC (mirror contact certified) |
Operating Rate | Up to 3600 cycles/hour |
Mounting Options | DIN Rail / Screw Fixing |
Connection Type | Screw Clamp Terminals |
Standards Compliance | IEC, UL, CSA, CCC, EAC, Marine |
Environmental Compliance | Green Premium (RoHS/REACH) |
Height | 77 mm |
Width | 45 mm |
Depth | 86 mm |
Net Weight | 0.325 kg |
Additional information
Weight | 0.325 kg |
---|---|
Dimensions | 86 × 45 × 77 mm |
