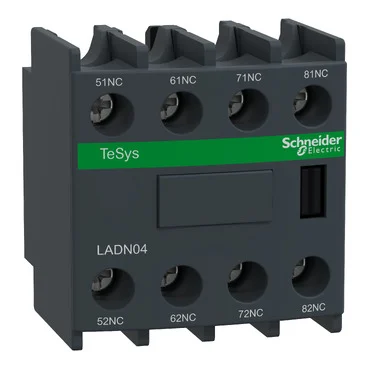

TeSys Deca Auxiliary Contact Block – LADN04

(0 Reviews) Write a review

TeSys Deca 4NC auxiliary contact block with front clip-on mounting and screw clamp terminals. Designed for LC1D, LC1F, and CAD devices, rated 10A/690V AC.

Original price was: $8.33.Current price is: $7.94.

(Save $0.39)
In stock
Buy now

Description

The TeSys LADN04 is a front-mounting auxiliary contact block designed to enhance the functionality of TeSys D contactors (LC1D), control relays (CAD), and TeSys F series (LC1F, CR1F). It features 4 normally closed (NC) contacts, all mirror contact certified, ensuring high reliability in safety-related control circuits.

Rated for up to 10 A at 690 V AC, this instantaneous auxiliary block connects via screw clamp terminals and clips directly to the front of compatible devices without the need for additional tools. It offers long mechanical and electrical life, making it ideal for demanding industrial and commercial environments.

Compliant with IEC, UL, CSA, CCC, and EAC standards and Green Premium certified (RoHS/REACH), the LADN04 meets both global safety requirements and sustainability commitments.

Specifications
Attribute Value
Range TeSys / TeSys Deca
Product Name TeSys Deca
Part Number LADN04
Product Type Auxiliary Contact Block
Device Short Name LADN
Mounting Location Front (Clip-on)
Pole Contact Composition 4 NC
Contact Operation Instantaneous
Rated Voltage Up to 690 V AC
Rated Current 10 A
Connection Type Screw Clamp Terminals
Range Compatibility TeSys D (LC1D, CAD), TeSys F (LC1F, CR1F), TeSys Deca (LC1D, CAD)
Certifications IEC, UL, CSA, CCC, EAC
Environmental Compliance Green Premium (RoHS/REACH)
Height 48 mm
Width 44 mm
Depth 42 mm
Net Weight 0.05 kg
Colour Dark Grey

Additional information

Weight 0.05 kg
Dimensions 42 × 44 × 48 mm
