Description

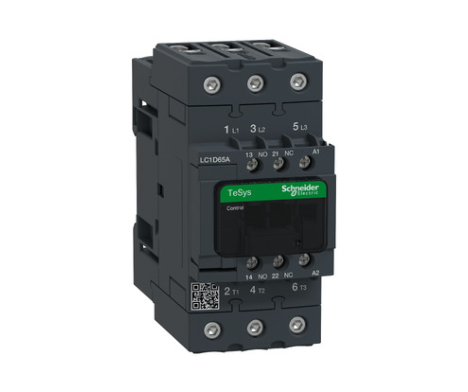

The Schneider Electric LC1D65AM7 TeSys D contactor is a high-performance switching device built for motor control applications up to 65A at ≤400V (AC-3/AC-3e), suitable for motors up to 30 kW at 400V. Its robust design ensures efficient and reliable switching in industrial environments.
Equipped with a 220V AC coil (50/60 Hz), the contactor includes built-in auxiliary contacts (1NO + 1NC), with the NC mirror contact certified for safety applications. Power connections are secured using EverLink BTR screw connectors, while control wiring is handled via screw clamp terminals, ensuring strong and reliable connections.
Designed for durability, the LC1D65AM7 supports high operating rates of up to 3,600 cycles per hour and performs effectively in ambient temperatures up to 60°C. Its compact width of 55 mm allows for efficient panel space utilization, and it can be mounted easily using DIN rail or screw fixing methods.
Certified to multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine, and compliant with Green Premium (RoHS/REACH), this contactor is a dependable and globally accepted solution for industrial motor control systems.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Contactor |
| Model | LC1D65AM7 |
| Series | TeSys Deca |
| Brand | Schneider Electric |
| Number of Poles | 3P (3NO) |
| Rated Current (AC-3/AC-3e) | 65 A |
| Rated Voltage | ≤ 400 V AC |
| Motor Power Rating | 30 kW @ 400 V |
| Coil Voltage | 220 V AC (50/60 Hz) |
| Auxiliary Contacts | 1 NO + 1 NC (NC mirror certified) |
| Maximum Operating Rate | 3600 cycles/hour |
| Mounting Type | DIN Rail / Screw Fixing |
| Power Connection | EverLink BTR Screw Connectors |
| Control Connection | Screw Clamp Terminals |
| Height | 122 mm |
| Width | 55 mm |
| Depth | 120 mm |
| Net Weight | 0.86 kg |
| Compliance Standards | IEC, UL, CSA, CCC, EAC, Marine |
| Environmental Compliance | RoHS / REACH (Green Premium) |
