Description

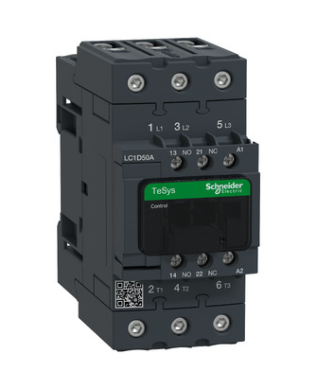

The Schneider Electric LC1D50AM7 TeSys D contactor is a high-performance switching device built for controlling 3-phase motors in demanding industrial environments. With a rated current of 50A (AC-3/AC-3e), it is suitable for motor applications up to 22 kW at 400V, making it ideal for heavy-duty motor control systems.
This contactor features a 220V AC coil (50/60 Hz) and includes built-in auxiliary contacts (1NO + 1NC), with a mirror-certified NC contact for enhanced safety and monitoring. Power connections are secured using EverLink BTR screw connectors, while control wiring is handled via screw clamp terminals, ensuring reliable and durable connections.
Engineered for high operational performance, the LC1D50AM7 supports switching rates of up to 3,600 cycles per hour and operates efficiently in ambient temperatures up to 60°C. Its compact 55 mm width allows optimal use of panel space, while flexible mounting options (DIN rail or screw fixing) simplify installation.
Certified to international standards including IEC, UL, CSA, CCC, EAC, and Marine, and compliant with Green Premium (RoHS/REACH), this contactor delivers durability, safety, and global compatibility for industrial motor control applications.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Contactor |
| Model | LC1D50AM7 |
| Series | TeSys Deca |
| Brand | Schneider Electric |
| Number of Poles | 3P (3NO) |
| Rated Current (AC-3/AC-3e) | 50 A |
| Rated Voltage | ≤ 400 V AC |
| Motor Power Rating | 22 kW @ 400 V |
| Coil Voltage | 220 V AC (50/60 Hz) |
| Auxiliary Contacts | 1 NO + 1 NC (NC mirror certified) |
| Maximum Operating Rate | 3600 cycles/hour |
| Mounting Type | DIN Rail / Screw Fixing |
| Power Connection | EverLink BTR Screw Connectors |
| Control Connection | Screw Clamp Terminals |
| Height | 122 mm |
| Width | 55 mm |
| Depth | 120 mm |
| Net Weight | 0.855 kg |
| Compliance Standards | IEC, UL, CSA, CCC, EAC, Marine |
| Environmental Compliance | RoHS / REACH (Green Premium) |
