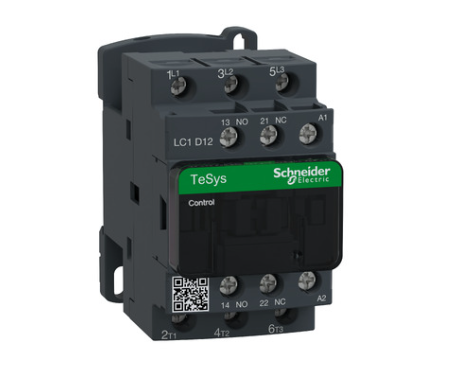

TeSys D contactor – LC1D12M7
The Schneider Electric LC1D12M7 TeSys Deca contactor is a compact 3-pole (3NO) 12A contactor with a 220V AC coil, ideal for reliable motor control in industrial applications.
Original price was: ₦22,294.00.₦21,128.00Current price is: ₦21,128.00.
(Save ₦1,166.00)
In stock
Description
The Schneider Electric LC1D12M7 TeSys D contactor is a durable and efficient solution for controlling 3-phase motors in industrial environments. Rated at 12A (AC-3/AC-3e), it is suitable for motor applications up to 5.5 kW at 400V, making it ideal for small to medium-duty motor control systems.
Equipped with a 220V AC coil (50/60 Hz), the contactor features built-in auxiliary contacts (1NO + 1NC), including a mirror-certified NC contact for enhanced safety and monitoring. The screw clamp terminals provide secure and straightforward wiring for both power and control connections.
Designed for performance and longevity, the LC1D12M7 supports high operating rates of up to 3,600 cycles per hour and operates reliably in ambient temperatures up to 60°C. Its compact width of 45 mm allows efficient panel space utilization, while flexible mounting options (DIN rail or screw fixing) simplify installation.
Certified to international standards including IEC, UL, CSA, CCC, EAC, and Marine, and compliant with Green Premium (RoHS/REACH), this contactor ensures quality, safety, and global acceptance in industrial automation systems.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Contactor |
| Model | LC1D12M7 |
| Series | TeSys Deca |
| Brand | Schneider Electric |
| Number of Poles | 3P (3NO) |
| Rated Current (AC-3/AC-3e) | 12 A |
| Rated Voltage | ≤ 440 V AC |
| Motor Power Rating | 5.5 kW @ 400 V |
| Coil Voltage | 220 V AC (50/60 Hz) |
| Auxiliary Contacts | 1 NO + 1 NC (NC mirror certified) |
| Maximum Operating Rate | 3600 cycles/hour |
| Mounting Type | DIN Rail / Screw Fixing |
| Terminal Type | Screw Clamp |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 86 mm |
| Net Weight | 0.325 kg |
| Compliance Standards | IEC, UL, CSA, CCC, EAC, Marine |
| Environmental Compliance | RoHS / REACH (Green Premium |
Additional information
| Weight | 0.325 kg |
|---|
