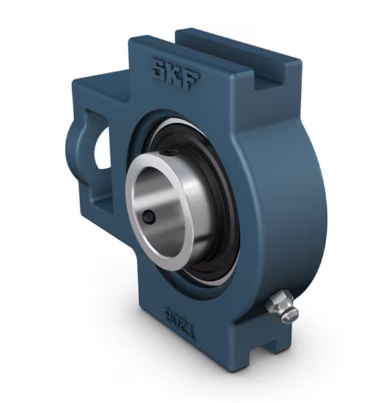

Take-Up Cast Iron Unit with Insert Ball Bearing – TU 40 TF

The TU 40 TF is a high-quality take-up ball bearing unit designed for smooth operation in industrial applications. It features a sealed deep groove ball bearing housed in a robust grey cast iron unit, ensuring long-term reliability. Typically mounted in take-up frames, this unit has an extended inner ring on both sides and uses a set screw locking mechanism for quick and secure shaft mounting. It accommodates static initial misalignment, reduces noise and vibration, and is ideal for applications with alternating rotation.

Specifications:

• Shaft Diameter: 1.575 in
• Housing Overall Width: 1.929 in
• Bearing Width (Total): 1.937 in
• Product Net Weight: 5.084 lb
• eClass Code: 23-05-08-02
• UNSPSC Code: 31171536
