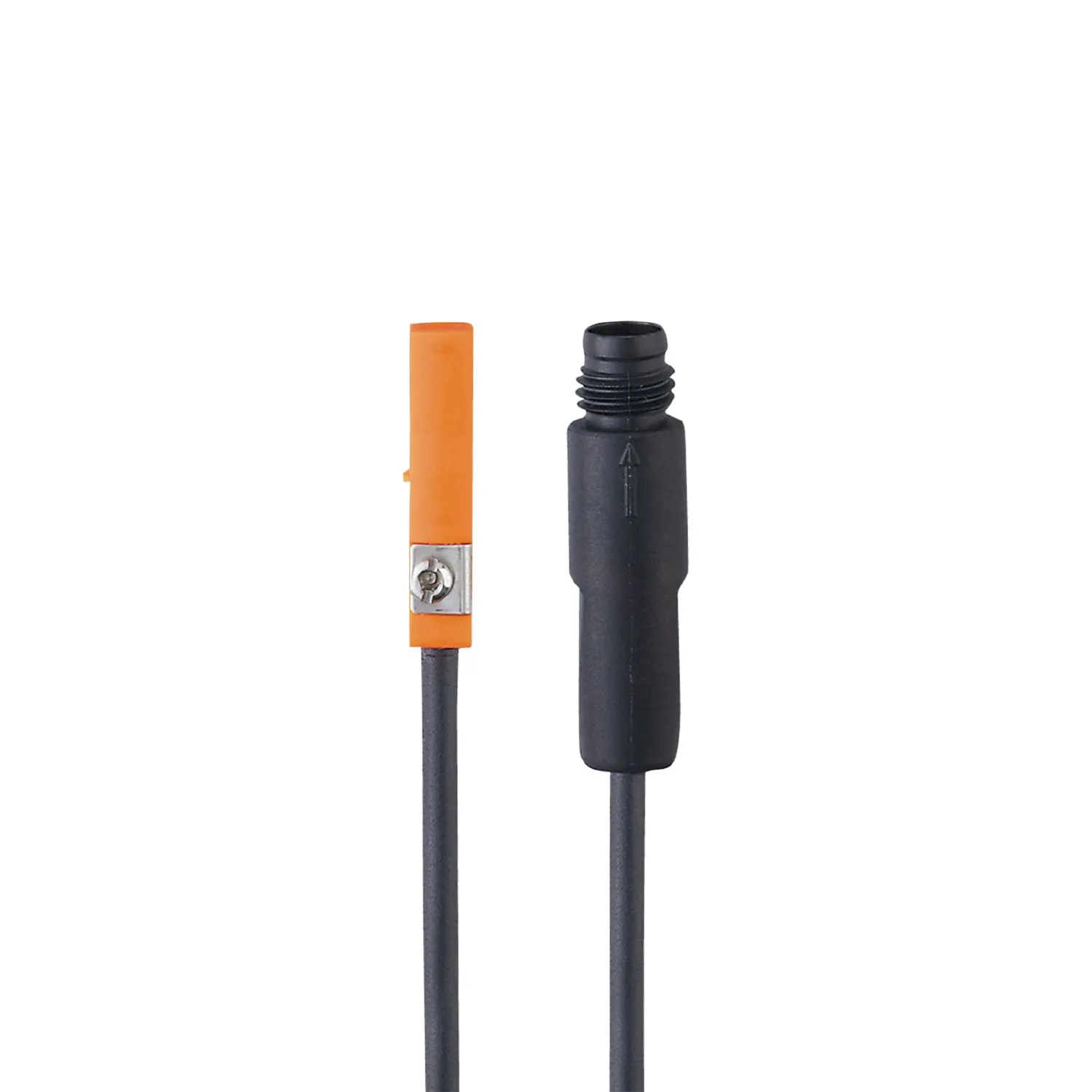

T-slot Cylinder Sensor – MK5138
Compact T-slot cylinder sensor with quick self-locking fixture, high switching frequency, and reliable position detection in industrial automation.
Original price was: $28.53.$27.03Current price is: $27.03.
(Save $1.50)Description
The T-slot Cylinder Sensor MK5138 (MKT3020BBPKG/A/0,3M/ZH/AS) is designed for precise position detection in pneumatic cylinders. Its self-locking fixture allows quick mounting and adjustment, while the “drop from the top” installation ensures easy fitting into slots. With a moulded cable for excellent strain relief and very small hysteresis, it guarantees accurate and reliable detection. The sensor supports high switching frequencies and offers robust performance in demanding industrial environments, making it ideal for factory automation and machine applications.
Specifications
Category | Details |
---|---|
Product Name | T-slot Cylinder Sensor MK5138 |
Model | MKT3020BBPKG/A/0,3M/ZH/AS |
Electrical Design | PNP |
Output Function | Normally open |
Dimensions | 25 × 5 × 6.5 mm |
Operating Voltage | 10…30 V DC (“supply class 2” to cULus) |
Current Consumption | < 10 mA |
Protection Class | III |
Reverse Polarity Protection | Yes |
Max. Power-On Delay Time | 30 ms |
Max. Voltage Drop (DC) | 2.5 V |
Special Features | Self-locking fixture, easy “drop-in” installation, high switching frequency |
Weight | 0.0121 kg |
Additional information
Weight | 0.0121 kg |
---|---|
Dimensions | 25 × 5 × 6.5 mm |
