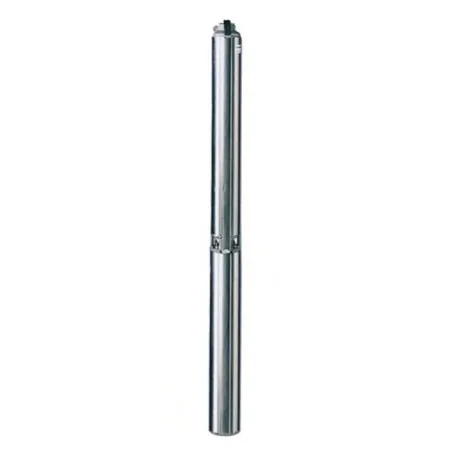

Submersible Well Pump – 12GS55T/B-4OS
The 12GS55T/B-4OS Submersible Well Pump from Lowara’s e-GS series is a high-efficiency pump engineered for well water supply, irrigation, pressurization, and fire prevention. Powered by a 5.5 kW three-phase motor, it combines abrasion resistance, durable stainless-steel construction, and reliable performance for long service life.
Original price was: $1 815.15.$1 720.24Current price is: $1 720.24.
(Save $94.91)
In stock
Description
The Lowara 12GS55T/B-4OS submersible well pump is part of the e-GS range, designed for continuous duty in residential, agricultural, and industrial water systems. Featuring floating impellers and a stainless-steel shaft with hexagonal drive, it ensures effective power transmission and superior resistance to sand and abrasive particles. The investment-cast stainless-steel upper and lower supports provide corrosion resistance and a rigid coupling to the motor.
The integrated stainless-steel non-return valve enhances reliability and simplifies installation. With an IP68-rated rewindable oil-bath motor, this pump can operate at depths of up to 150 m and handle water temperatures up to 35°C. Its robust 35-stage hydraulic design delivers high head and dependable water supply performance.
Suitable for applications such as well and cistern water supply, sprinkler irrigation, pressure boosting, and fire prevention, the Lowara 12GS55T/B-4OS delivers both efficiency and long service life in challenging environments.
Specifications
| Category | Details |
|---|---|
| Part Number | 12GS55T/B-4OS |
| Code | 104061330 |
| Brand | Lowara e-GS |
| Type | Submersible well pump |
| Motor | Three-phase 3x400V |
| Motor Type | Oil bath, rewindable |
| Insulation Class | F (155°C) |
| Protection Degree | IP68 |
| Power | 5.5 kW |
| Number of Stages | 35 |
| Max Immersion Depth | 150 m |
| Max Liquid Temperature | 35°C |
| Pump Body Material | Stainless steel AISI 304 |
| Impeller Material | Noryl® |
| Elastomers | NBR |
| Mechanical Seal | Carbon-ceramic, anti-sand protection |
| Shaft Design | Hexagonal |
| Non-return Valve | Integrated, stainless steel |
| Motor Dimensions Ø | 4″ |
| Mouth Dimensions | Rp 2 |
| Length (L) | 2679 mm |
| Weight | 42 kg |
| Applications | Well water supply, irrigation, pressurization, fire prevention |
Additional information
| Weight | 42 kg |
|---|
