Description

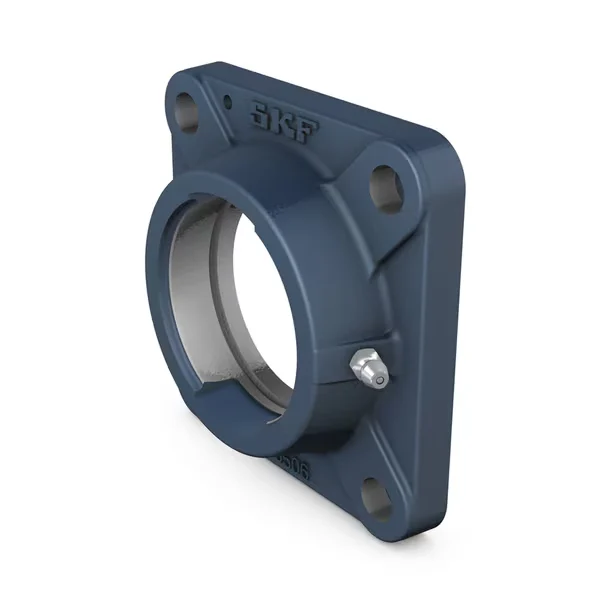

The SKF FY 512 M square flanged housing is engineered from high-quality grey cast iron for strength and durability. Designed to be bolted with four fasteners to a machine wall or frame, it ensures stability and secure mounting in industrial applications. Its spherical seating allows for proper bearing alignment, even in challenging conditions where high contamination or heavy loads are present.
Equipped with a relubrication hole and grease fitting, the housing supports extended service life through efficient lubrication management. SKF housings like the FY 512 M are widely used in agricultural machinery, conveyors, fans, and other heavy-duty equipment, where long-lasting performance and reliability are critical.
Specifications
| Attribute | Value |
|---|---|
| Spherical seating diameter | 110 mm |
| Housing overall width | 52 mm |
| Centre distance between bolt holes | 143 mm |
| Housing type | Flanged |
| Flanged housing type | Square |
| Number of bolt holes for fasteners | 4 |
| Fastening bolt hole type | Plain |
| Material, housing | Cast iron |
| Coating | Without |
| Relubrication hole | With |
| Grease fitting | With |
| Product net weight | 2.58 kg |
| eClass code | 23-05-08-02 |
| UNSPSC code | 31171536 |
| Part number | FY 512 M |
