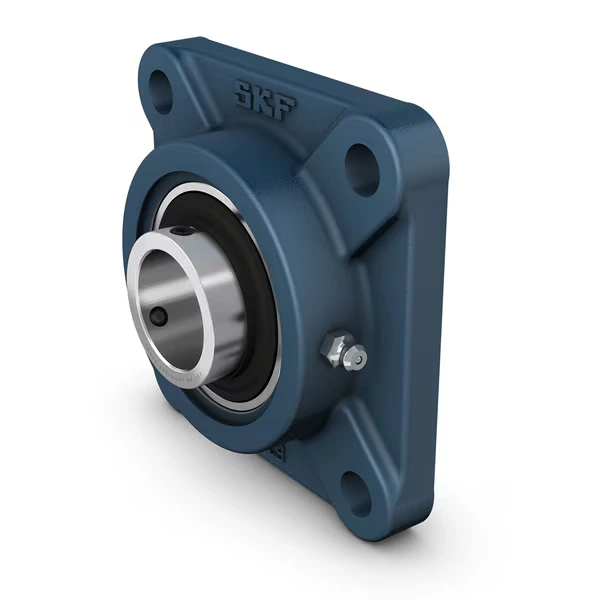

Square Flanged Ball Bearing Unit – FY 15 TF
SKF FY 15 TF Square Flanged Bearing Unit – Compact cast iron housing with insert bearing and set screw locking. Designed for durability, high speeds, and reliable load support in small-shaft applications.
Original price was: $23.45.$19.59Current price is: $19.59.
(Save $3.86)
In stock
Description
The SKF FY 15 TF Square Flanged Ball Bearing Unit is a high-quality, ISO-compliant solution for light-to-medium duty applications. It combines a robust cast iron square flange housing with an insert bearing that features an extended inner ring and set screw locking for secure shaft attachment.
Equipped with contact seals and flingers on both sides, the unit is well-protected against contamination while retaining lubrication for extended service life. Its four-bolt flange design ensures stable mounting and allows moderate initial misalignment.
The FY 15 TF is suitable for applications requiring reliable operation at high speeds, contamination resistance, and relatively heavy load support in compact installations. Typical uses include conveyors, agricultural machinery, small pumps, and general industrial equipment.
Specifications
| Category | Details |
|---|---|
| Product Type | Square Flanged Ball Bearing Unit |
| Model | FY 15 TF |
| Standards | ISO compliant |
| Shaft Diameter | 15 mm |
| Housing Type | Flanged (Square, 4-bolt) |
| Bolt Hole Diameter | 10 mm |
| Centre Distance Between Bolt Holes | 54 mm |
| Housing Overall Width | 26 mm |
| Bearing Width (Total) | 27.4 mm |
| Unit Width (Total) | 32.9 mm |
| Dynamic Load Rating (C) | 9.56 kN |
| Static Load Rating (C₀) | 4.75 kN |
| Limiting Speed | 9,500 r/min (with shaft tolerance h6) |
| Inner Ring Retaining Feature | Set screws |
| Bore Type | Cylindrical |
| Sealing (Bearing) | Seal and flinger on both sides (Contact type) |
| Sealing (Unit) | Optional end cover |
| Lubrication | Grease, with relubrication hole and grease fitting |
| Housing Material | Cast iron |
| Bearing Material | Bearing steel |
| Net Weight | 0.383 kg |
| Classification Codes | eClass: 23-05-08-02 / UNSPSC: 31171536 |
Additional information
| Weight | 0.383 kg |
|---|---|
| Dimensions | 54 × 32.9 mm |
