Description

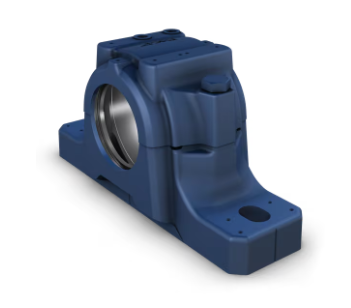

The SNL 518-615 Split Plummer (Pillow) Block Housing is part of the trusted SNL series, known for its reliability, flexibility, and efficiency in industrial applications. Designed to maximize bearing performance, this housing helps extend service life while minimizing maintenance requirements.
Its split, two-piece construction allows for quick installation, inspection, and replacement of bearings without dismantling the entire shaft system—making it highly suitable for heavy-duty and continuous operations.
Manufactured from high-quality cast iron, the SNL 518-615 housing offers excellent mechanical strength and stability. It supports both through shaft and shaft-end mounting configurations, giving engineers flexibility in design and installation.
The housing is optimized for grease lubrication, helping reduce friction and minimize lubricant leakage. With compatibility across a wide range of bearings, seals, and accessories, it enables cost-effective and customizable bearing arrangements without the need for special housing designs.
This housing is ideal for applications such as conveyors, fans, processing equipment, and general industrial machinery.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Split Plummer (Pillow) Block Housing |
| Part Number | SNL 518-615 |
| Housing Type | Plummer / Pillow Block |
| Housing Configuration | Two-piece (Split) |
| Diameter of Bearing Seat | 160 mm |
| Width of Bearing Seat | 65 mm |
| Centre Height | 100 mm |
| Centre Distance Between Bolt Holes | 290 mm |
| Attachment Bolt Diameter | 20 mm |
| Mounting Arrangement | Through shaft / Shaft end |
| Number of Bolt Holes | 2 |
| Material | Cast iron |
| Seal Type | Without (configurable options available) |
| Lubrication Type | Grease |
| Key Features | Easy installation, reduced maintenance, cost-effective |
| Product Net Weight | 13.1 kg |
| eClass Code | 23-05-17-01 |
| UNSPSC Code | 31171519 |
