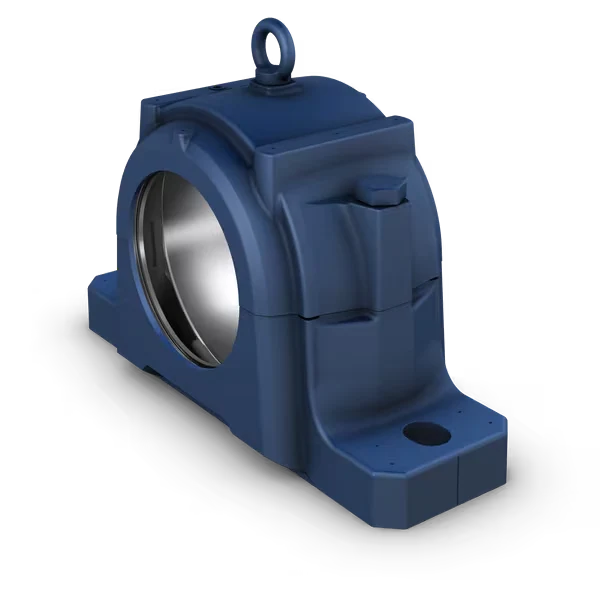

Split Plummer Block Housing – SNL 532
Cast iron split plummer (pillow) block housing for 290 mm bearing seat, designed for maximum service life, easy installation, and reduced maintenance.
Original price was: $806.88.$764.69Current price is: $764.69.
(Save $42.19)
In stock
Description
The SNL 532 split plummer block housing is part of the renowned SKF SNL series, engineered to provide a cost-effective and reliable bearing arrangement. Designed for use with through shaft or shaft end configurations, it accommodates large bearings while ensuring minimal lubricant leakage.
Its two-piece cast iron construction simplifies installation, reduces downtime, and offers exceptional durability. Suitable for grease lubrication and compatible with various seal options, it minimizes maintenance requirements and extends bearing service life.
Specifications
| Attribute | Value |
|---|---|
| Part Number | SNL 532 |
| Diameter of Bearing Seat | 290 mm |
| Width of Bearing Seat | 114 mm |
| Centre Height (Pillow Block) | 170 mm |
| Centre Distance Between Bolt Holes | 470 mm |
| Attachment Bolt Diameter | 30 mm |
| Housing Type | Plummer/Pillow Block |
| Housing Configuration | Two-piece |
| Mounting Arrangement | Through Shaft / Shaft End |
| Number of Bolt Holes | 2 |
| Material (Housing) | Cast Iron |
| Bearing Housing Seal Type | Without |
| Housing Lubrication Feature | Grease |
| Product Net Weight | 58.3 kg |
| eClass Code | 23-05-17-01 |
| UNSPSC Code | 31171519 |
Additional information
| Weight | 58.3 kg |
|---|---|
| Dimensions | 290 × 114 × 170 mm |
