Description

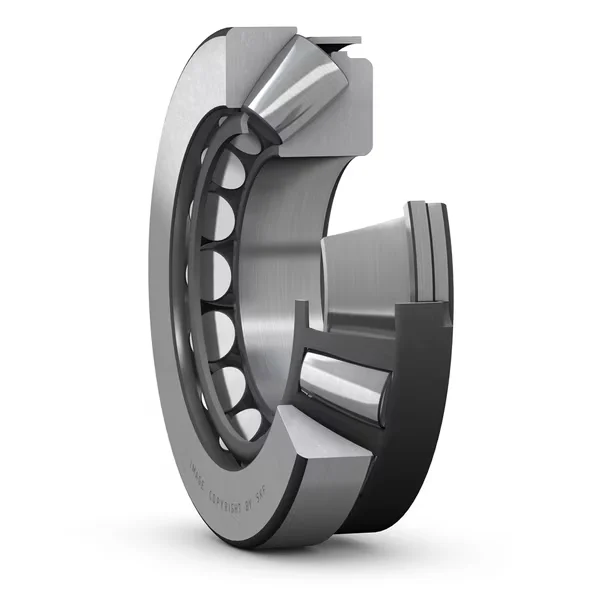

The SKF 29418 E is a spherical roller thrust bearing from the SKF Explorer performance class, optimized for demanding axial load applications. With the highest load ratings among thrust bearings, it delivers superior power density in compact designs.
Its unique internal geometry allows it to accommodate combined axial and radial loads, making it suitable for heavily loaded industrial equipment such as gearboxes, cranes, and rolling mills. Depending on the arrangement, it can function as a self-aligning bearing to tolerate shaft misalignment, or as part of a very stiff assembly for maximum rigidity.
The stamped steel cage ensures durability and optimized roller guidance, contributing to low friction, extended service intervals, and reliable performance under severe conditions. With a separable design, installation and maintenance are simplified.
Specifications
| Attribute | Value |
|---|---|
| Part number | 29418 E |
| Bearing type | Spherical roller thrust bearing |
| Bore diameter | 90 mm |
| Outside diameter | 190 mm |
| Height | 60 mm |
| Basic dynamic load rating | 815 kN |
| Basic static load rating | 2 000 kN |
| Reference speed | 1 900 r/min |
| Limiting speed | 3 400 r/min |
| SKF performance class | SKF Explorer |
| Bore type | Cylindrical |
| Cage | Sheet metal (stamped steel) |
| Tolerance class | Normal |
| Locating feature, housing washer | None |
| Separable design | Yes |
| Product net weight | 7.54 kg |
| Indicative carbon footprint (manufacture) | 27.1 kg CO₂e |
| eClass code | 23-05-11-03 |
| UNSPSC code | 31171507 |
