Description

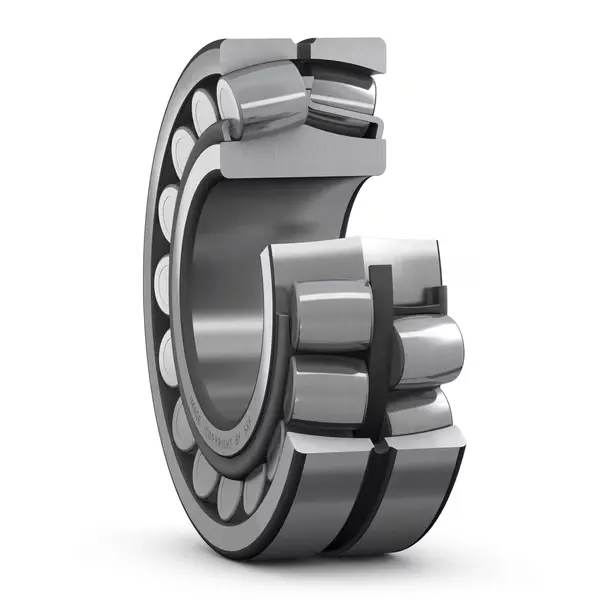

The SKF 22214 E spherical roller bearing belongs to the SKF Explorer class, engineered to handle demanding applications with exceptional durability and efficiency. Its self-aligning design allows it to accommodate shaft deflections and misalignments without increasing friction or operating temperature, ensuring smooth and reliable performance under varying load conditions.
Built with a robust sheet metal cage and optimized internal geometry, this bearing delivers high load-carrying capacity in both directions while maintaining low friction levels. The relubrication capability further extends service life, making it a dependable choice for industries where uptime and reduced maintenance are critical.
With a compact design and compatibility with modular systems—including housings, sleeves, and nuts—the 22214 E is versatile across multiple industrial applications, from heavy machinery to processing equipment.
Specifications
| Attribute | Value |
|---|---|
| Part number | 22214 E |
| Bearing type | Spherical roller bearing |
| Bore diameter | 70 mm |
| Outside diameter | 125 mm |
| Width | 31 mm |
| Basic dynamic load rating | 213 kN |
| Basic static load rating | 228 kN |
| Reference speed | 5 000 r/min |
| Limiting speed | 6 700 r/min |
| SKF performance class | SKF Explorer |
| Number of rows | 2 |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Radial internal clearance | CN (Normal) |
| Tolerance class (dimensions) | Normal |
| Tolerance class (run-out) | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Locating feature, outer ring | Without |
| Indicative carbon footprint (manufacture) | 5.76 kg CO₂e |
| Product net weight | 1.6 kg |
| eClass code | 23-05-09-11 |
| UNSPSC code | 31171510 |
