Description

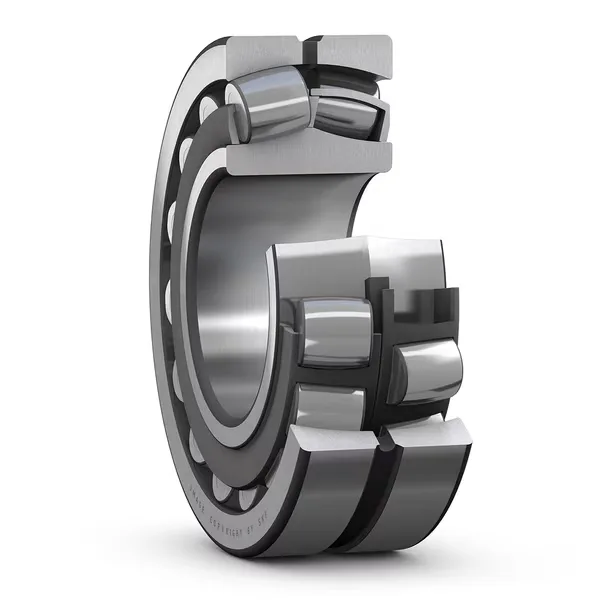

The 23164 CCK/W33 is a high-precision SKF Explorer spherical roller bearing meticulously designed for demanding industrial environments where performance and reliability are non-negotiable. Engineered with a tapered bore for secure, interference-fit mounting and a durable sheet metal cage, it delivers outstanding load-carrying capacity in both radial and axial directions.
Its self-aligning geometry compensates for shaft misalignment and deflection without compromising efficiency, maintaining smooth, stable operation even under extreme heavy-load conditions. The bearing incorporates integrated relubrication features for prolonged service intervals, low-friction rolling elements for enhanced energy efficiency, and superior wear resistance for extended lifespan.
Ideal for applications demanding continuous operation, minimal downtime, and reduced maintenance costs, it is fully compatible with modular assembly systems, including housings, sleeves, and locknuts. This makes it a robust, versatile solution for high-performance rotating equipment across heavy industries such as mining, power generation, and material processing.
Specification
Attributes | Value |
---|---|
Part Number | 23164 CCK/W33 |
Type | Spherical Roller Bearing |
Bore Diameter | 320 mm |
Outside Diameter | 540 mm |
Width | 176 mm |
Number of Rows | 2 |
Bore Type | Tapered 1:12 |
Cage | Sheet metal |
Radial Internal Clearance | CN |
Dynamic Load Rating | 3 923 kN |
Static Load Rating | 6 000 kN |
Reference Speed | 850 r/min |
Limiting Speed | 1 100 r/min |
Sealing | Without |
Lubrication | None (relubrication feature included) |
SKF Performance Class | SKF Explorer |
Locating Feature (Outer Ring) | Without |
Tolerance (Dimensions) | Normal |
Tolerance (Run-Out) | Normal |
Remanufacturing Candidate | Yes |
Carbon Footprint – Remanufacture | 202 kg CO₂e |
Carbon Footprint – Manufacture | 578 kg CO₂e |
Product Net Weight | 161 kg |
eClass Code | 23-05-09-11 |
UNSPSC Code | 31171510 |
