Description

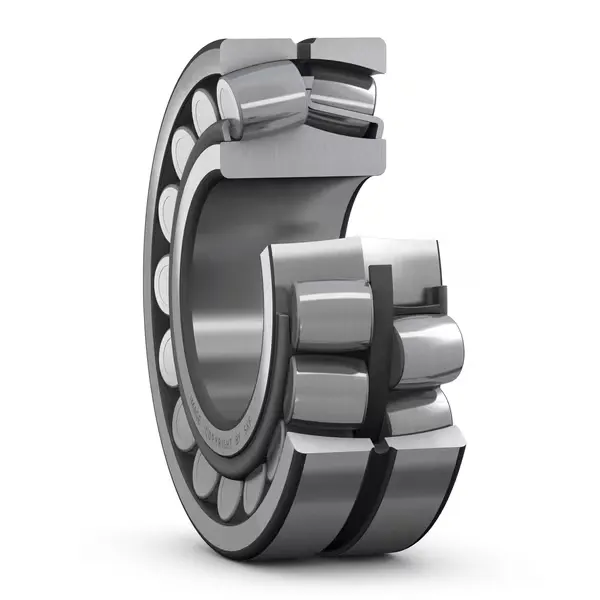

The 23036 CC/W33 spherical roller bearing is designed for demanding applications requiring exceptional load capacity and tolerance to misalignment. Its self-aligning geometry accommodates shaft deflections and misalignment without excessive friction or heat, ensuring reliable operation under heavy-duty conditions.
With integrated relubrication features, this bearing enables extended service intervals and reduced maintenance downtime. The CN radial internal clearance and P5 run-out tolerance support smooth high-speed operation while maintaining stability and durability. Its sheet metal cage provides strength and reliability for continuous industrial use.
As part of the SKF Explorer performance class, the 23036 CC/W33 offers improved wear resistance, longer service life, and energy efficiency. Supporting remanufacturing, it provides a cost-effective and sustainable solution, significantly reducing the carbon footprint compared to new bearings. This makes it a reliable choice for industries such as mining, steel production, and paper processing.
Specifications
| Attribute | Details |
|---|---|
| Product Type | Spherical Roller Bearing |
| Model | 23036 CC/W33 |
| Performance Class | SKF Explorer |
| Bore Diameter | 180 mm |
| Outside Diameter | 280 mm |
| Width | 74 mm |
| Number of Rows | 2 |
| Cage Material | Sheet metal |
| Radial Internal Clearance | CN |
| Tolerance (Dimensions) | Normal |
| Tolerance (Run-out) | P5 |
| Sealing | Without |
| Lubrication | None (Relubrication feature included) |
| Load Rating (Dynamic) | 883 kN |
| Load Rating (Static) | 1,250 kN |
| Reference Speed | 2,000 r/min |
| Limiting Speed | 2,600 r/min |
| Relubrication Feature | Yes |
| Remanufacturing Candidate | Yes |
| Carbon Footprint (New) | 59.1 kg CO₂e |
| Carbon Footprint (Remanufactured) | 20.7 kg CO₂e |
| Net Weight | 16.4 kg |
| eClass Code | 23-05-09-11 |
| UNSPSC Code | 31171510 |
