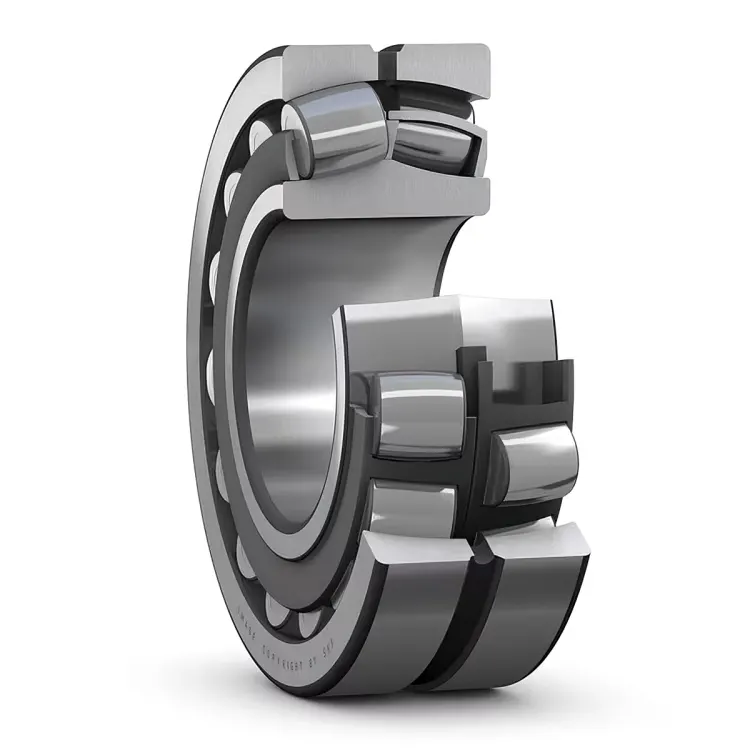

Spherical Roller Bearing – 22226 EK
The SKF 22226 EK spherical roller bearing is designed to accommodate heavy loads in both directions. Featuring a tapered bore and relubrication capability, it ensures long service life, reduced friction, and reliable operation even under misalignment or shaft deflection.
Original price was: $499.62.$473.49Current price is: $473.49.
(Save $26.13)
In stock
Description
The SKF 22226 EK is a robust spherical roller bearing engineered to handle demanding industrial applications. With its self-aligning design, it effectively compensates for misalignment and shaft deflections while carrying high radial and axial loads.
Belonging to the SKF Explorer performance class, it offers superior wear resistance, reduced friction, and extended service life. The tapered bore allows for secure mounting with adapter or withdrawal sleeves, while its relubrication features support reliable, long-term performance.
Suitable for use in modular bearing systems with housings, sleeves, and nuts, the 22226 EK provides dependable operation in heavy-duty machinery where durability and efficiency are critical.
Specifications
| Attribute | Value |
|---|---|
| Part Number | 22226 EK |
| Bearing Type | Spherical roller bearing |
| Number of Rows | 2 |
| Bore Diameter | 130 mm |
| Outside Diameter | 230 mm |
| Width | 64 mm |
| Basic Dynamic Load Rating | 758 kN |
| Basic Static Load Rating | 930 kN |
| Reference Speed | 2,600 r/min |
| Limiting Speed | 3,600 r/min |
| Bore Type | Tapered 1:12 |
| Cage Material | Sheet metal |
| Radial Internal Clearance | CN |
| Tolerance Class (Dimensions) | Normal |
| Tolerance Class (Run-out) | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | With |
| Locating Feature, Outer Ring | Without |
| Candidate for Remanufacturing | Yes |
| Indicative Carbon Footprint (Manufacture) | 39.5 kg CO2e |
| Indicative Carbon Footprint (Remanufacture) | 13.8 kg CO2e |
| Product Net Weight | 11 kg |
| Material | Bearing steel |
| SKF Performance Class | SKF Explorer |
| eClass Code | 23-05-09-11 |
| UNSPSC Code | 31171510 |
Additional information
| Weight | 11 kg |
|---|---|
| Dimensions | 230 × 64 mm |
