Description

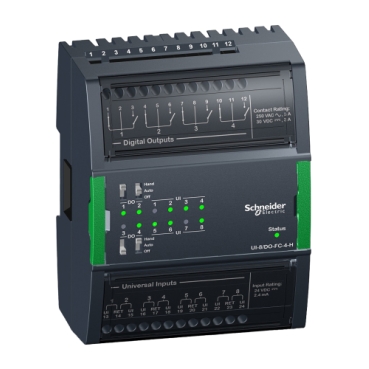

The SpaceLogic UI-8/DO-FC-4-H I/O Expansion Module is designed to expand the functionality of the SpaceLogic AS-P Server within EcoStruxure Building Operation systems. The module integrates 8 universal inputs and 4 digital Form C outputs, making it suitable for a wide range of building automation monitoring and control tasks.
The universal inputs can be used with various signal types, including temperature, pressure, flow, and equipment status points, allowing flexible integration of sensors and monitoring devices within HVAC and building control systems. The digital Form C outputs are designed for direct load applications, enabling reliable control of field equipment such as relays, alarms, and other digital devices.
This model includes hand/off/auto override switches, which allow manual control during system commissioning, testing, or maintenance, providing additional operational flexibility.
The module features a compact design with dimensions of 114 mm in height, 30 mm in width, and 64 mm in depth, allowing efficient installation in control panels. It requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001) for installation and operation.
Constructed with UL94V0-5VB flame-retardant material, the module meets several international standards including CE, ICES-003, FCC Part 15 Class B, and RCM, ensuring reliable performance in professional building automation systems.
Specifications
| Feature | Specification |
|---|---|
| Product Name | SpaceLogic UI-8/DO-FC-4-H |
| Device Short Name | UI-8/DO-FC-4-H |
| Product Type | I/O Module |
| Universal Inputs | 8 |
| Digital Outputs | 4 Form C |
| Special Feature | Hand/Off/Auto Override Switches |
| Power Consumption | 1.9 W |
| Flame Retardance | UL94V0-5VB |
| Certifications | CE, ICES-003, FCC Part 15 Class B, RCM |
| Required Base | SpaceLogic Central I/O Terminal Base (SXWTBIOW110001) |
| Height | 114 mm |
| Width | 30 mm |
| Depth | 64 mm |
| Weight | 0.181 kg |
