Description

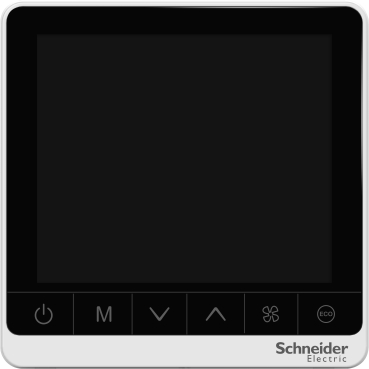

The SpaceLogic TC907 Thermostat, part of the SpaceLogic TC900 series, is designed to provide efficient on/off control for fan coil HVAC systems in modern buildings. It is suitable for installations in offices, hotels, hospitals, residential buildings, and other commercial spaces where reliable temperature management is required.
The thermostat supports 4-pipe fan coil configurations and provides 3-speed fan control, allowing users to manage heating, cooling, and ventilation effectively. The touchscreen interface makes operation simple and intuitive while displaying key information such as room temperature, system status, and set-point.
Equipped with a 100 kOhm NTC thermistor sensor, the device accurately measures room temperature to maintain comfortable indoor conditions. The TC907 also supports Modbus networking, enabling seamless integration with building management systems (BMS) for centralized monitoring and control.
Designed for dependable performance, the thermostat operates on a 240 V power supply and features a compact white housing suitable for modern interior environments. Its dimensions of 86 mm × 86 mm × 40 mm make it ideal for standard wall installations while maintaining a clean and professional appearance.
Specifications
| Feature | Specification |
|---|---|
| Range | SpaceLogic |
| Product Name | SpaceLogic TC900 |
| Model | TC907 |
| Product Type | Thermostat |
| Control Type | Fan Coil On/Off Control |
| HVAC Configuration | 4-Pipe System |
| Fan Control | 3 Fan Speeds |
| Communication | Modbus (Networking) |
| Sensor Type | 100 kOhm NTC Thermistor |
| Power Supply | 240 V |
| Interface | Touchscreen |
| Colour | White |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 40 mm |
| Weight | 0.22 kg |
