Description
The SpaceLogic SLA Series SLASXX2 Room Sensor is a flexible multisensor platform engineered for accurate monitoring of humidity and temperature in building automation systems (BAS). Designed for seamless integration with HVAC controllers, the unit supports analog outputs including 4–20 mA, 0–5 V DC, and 0–10 V DC, ensuring compatibility with a wide range of control systems.

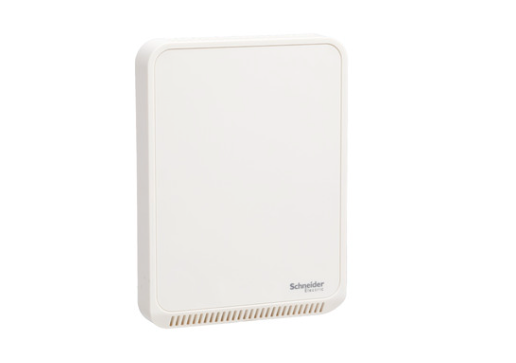

Housed in a medium matte white wall-mounted enclosure, the device features a clean, minimalist design with no user interface or display, protected by a blank cover for tamper resistance and durability. This makes it ideal for installations in commercial offices, residential living spaces, hotels, healthcare facilities, and other indoor environments where discreet monitoring is required.
The SLASXX2 integrates both temperature and humidity sensing elements, enabling effective climate regulation, humidity control, temperature control, and fan speed management within HVAC systems. Its compact dimensions (115 × 85 × 24 mm) allow for neat wall installation without compromising interior aesthetics.
Certified to multiple international standards including CE, RCM, EAC, ICES-003, and cULus, the SpaceLogic SLA Series sensor delivers reliable performance and compliance in global markets.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | SpaceLogic Room Unit |
| Model | SLASXX2 |
| Range | SpaceLogic SLA Series |
| Product Type | Humidity & Temperature Sensor |
| Type of Measurement | Humidity, Temperature |
| Output Signals | 4–20 mA, 0–5 V DC, 0–10 V DC |
| Device Application | HVAC, Temperature Control, Fan Speed Control |
| Specific Application | Humidity Control |
| Mounting Type | Wall-mounted |
| Display Type | Without display |
| Housing Finish | Matte white |
| Location | Living space |
| Height | 115 mm |
| Width | 85 mm |
| Depth | 24 mm |
| Weight | 180 g |
| Certifications | CE (EN 61000-6-2, EN 61000-6-3, EN 61326-1), RCM, EAC, ICES-003, cULus |
