Description

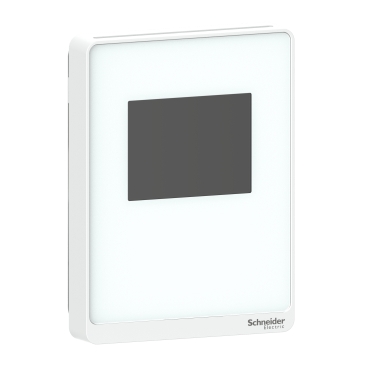

The SpaceLogic SLA Air Quality Room Sensor is a wall-mounted multisensor designed for use with Building Automation System (BAS) controllers. It supports 4 to 20 mA, 0–5 V DC, and 0–10 V DC outputs, providing accurate monitoring of carbon dioxide (CO₂) and temperature for efficient HVAC operation.
Equipped with an optimum white housing and a color touchscreen interface, the sensor allows easy adjustment of controls and setpoints. Its compact design is ideal for offices, classrooms, and commercial spaces, supporting temperature control and fan speed regulation to maintain optimal indoor air quality.
Specifications
| Specification | Details |
|---|---|
| Product Name | SpaceLogic SLA Air Quality Room Sensor – Optimum White (Touchscreen Interface) |
| Range | SpaceLogic |
| Product / Component Type | Air quality sensor |
| Product Series | SpaceLogic Room Unit |
| Measurement Type | Temperature, Carbon Dioxide (CO₂) |
| Device Application | HVAC |
| Functions | Temperature control, Fan speed control |
| Output Signal | 4–20 mA, 0–5 V DC, 0–10 V DC |
| User Interface | Color touchscreen with control and setpoint menu |
| Mounting Type | Wall mount |
| Depth | 23.7 mm |
| Height | 85 mm |
| Width | 115 mm |
| Weight | 0.182 kg (181.82 g) |
| Housing Color | Optimum white |
