Description

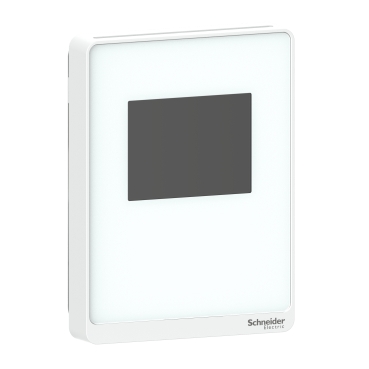

The SpaceLogic SLA Air Quality Room Sensor is a flexible multisensor platform designed for integration with Building Automation System (BAS) controllers. It supports analog output signals including 4–20 mA, 0–5 V DC, and 0–10 V DC, enabling seamless connectivity with a wide range of HVAC and building management systems.
This room unit measures temperature, humidity, and carbon dioxide (CO₂) levels to maintain healthy indoor environments and optimize building climate control. The device features a color touchscreen interface with control and setpoint menu, allowing users to easily monitor environmental conditions and adjust settings directly from the sensor.
Housed in an optimum white wall-mounted enclosure, the sensor blends well with modern interiors while delivering reliable environmental monitoring. Its compact design and advanced sensing capabilities make it suitable for humidity control, indoor air quality monitoring, and HVAC system optimization in commercial buildings, offices, and institutional facilities.
Specifications
| Specification | Details |
|---|---|
| Product Name | SpaceLogic SLA Air Quality Room Sensor – Optimum White (Touchscreen Interface) |
| Range | SpaceLogic |
| Product / Component Type | Air quality sensor |
| Product Series | SpaceLogic Room Unit |
| Measurement Type | Carbon Dioxide (CO₂), Humidity, Temperature |
| Device Application | HVAC |
| Product Specific Application | Humidity control |
| Functions | Temperature control, Fan speed control |
| Output Signal | 4–20 mA, 0–5 V DC, 0–10 V DC |
| User Interface | Color touchscreen with control and setpoint menu |
| Mounting Type | Wall mount |
| Depth | 23.7 mm |
| Height | 85 mm |
| Width | 115 mm |
| Weight | 0.182 kg (181.82 g) |
| Housing Color | Optimum white |
