Description

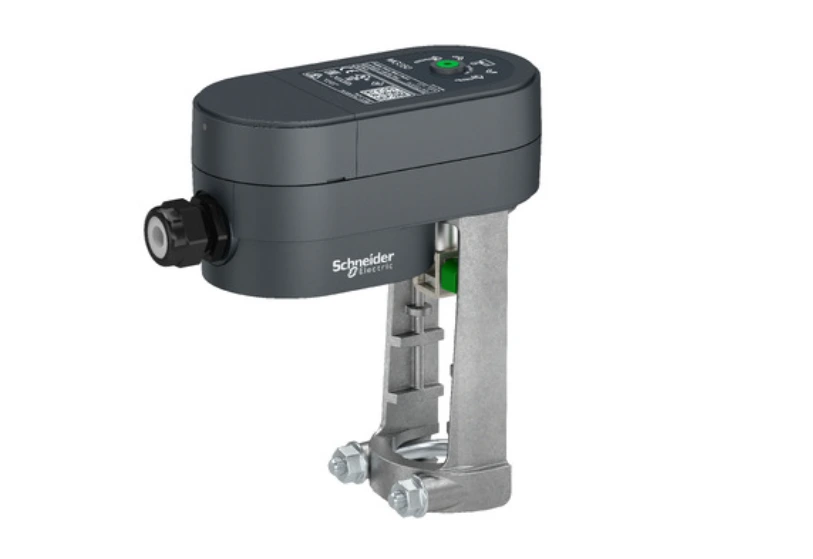

The SpaceLogic MG350V Globe Valve Actuator by Schneider Electric is engineered for efficient and precise control of two-way and three-way globe valves in commercial HVAC systems.
Ideal for use in fan coils, unit ventilators, reheat, cooling, and perimeter heating applications, the MG350V ensures accurate valve positioning and optimal energy performance.
Its non-spring return electromechanical design offers smooth and consistent operation, while auto-calibration automatically scales input signals to the valve stem travel for maximum control precision. The actuator is compatible with legacy VB-9 globe valves and various other valve types, simplifying integration into both new and retrofit installations.
Built for reliability and long life, the MG350V is housed in a durable body with an easy 20 mm conduit connection and 6–12 mm cable gland. Its low power consumption and robust duty cycle make it a cost-effective and environmentally friendly choice for modern building automation systems.
Specification
| Category | Details |
|---|---|
| Brand | Schneider Electric |
| Product Range | SpaceLogic |
| Product Type | Actuator |
| Actuator Type | Electric |
| Series | MG350 |
| Model | MG350V |
| Application | Control of two-way and three-way globe valves |
| Power Consumption (Hold-in) | 0.5 W |
| Power Loss Return | Non-spring return |
| Control Signal | Floating, 2-position (On/Off) |
| Duty Cycle | 20% |
| Conduit Connection | 1 × 20 mm conduit hole; gland for 6–12 mm O/D cable |
| Compatible Valves | VB-9 and other globe valves |
| Target Regions | Europe, Asia Pacific, Australia |
| Package Type | PCE |
| Package Quantity | 1 |
| Package Dimensions (H × W × L) | 19.4 cm × 17.2 cm × 8.6 cm |
| Package Weight | 820 g |
