Description

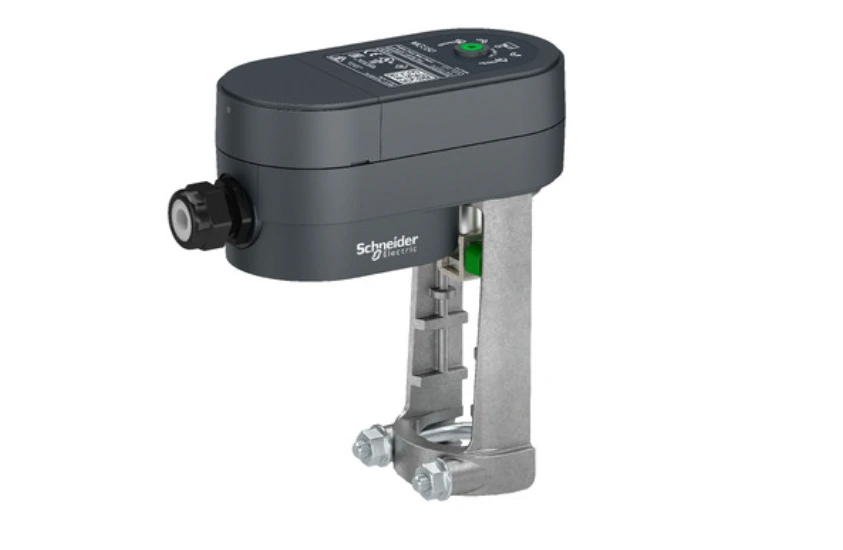

The SpaceLogic MG350V Globe Valve Actuator delivers reliable, high-performance control for a wide range of HVAC applications including fan coils, reheat coils, cooling units, and perimeter heating.
This non-spring return electromechanical actuator is compatible with two-way and three-way globe valves, including legacy VB-9 valves, ensuring versatility in both new and retrofit installations.
Featuring auto-calibration, the MG350V automatically adjusts the input signal to match valve stem travel, providing precision control and minimizing setup time.
Its durable construction, low power consumption (only 0.5 W hold-in), and flexible 2-position or floating control signal options make it ideal for energy-efficient, dependable operation across diverse building environments.
Specification
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Range | SpaceLogic |
| Product Type | Globe Valve Actuator |
| Actuator Type | Electric, Non-spring return |
| Model / Series | MG350 / MG350V |
| Compatible Valves | Two-way and three-way globe valves (including VB-9) |
| Control Signal | 2-position (On/Off), Floating |
| Power Consumption (Hold-in) | 0.5 W |
| Power Loss Return | Non-spring return |
| Conduit Connection | 1 × 20 mm conduit hole, gland for 6–12 mm O/D cable |
| Duty Cycle | 20 % |
| Features | Auto-calibration for precise valve control |
| Applications | Fan coils, unit ventilators, reheat, cooling, perimeter heating |
| Regions | Europe, Asia Pacific, Australia |
| Package Type | PCE |
| Package Quantity | 1 |
| Package Dimensions (L × W × H) | 8.8 cm × 17.4 cm × 19.2 cm |
| Package Weight | 840 g |
