SpaceLogic Glass Touch Panel – LSSMDN01NS
Schneider Electric LSSMDN01NS – SpaceLogic Glass Touch Panel for hotel door panel applications. Elegant, fully customizable Modbus touchscreen with room number display and bell button.
Original price was: $421.02.$395.33Current price is: $395.33.
(Save $25.69)
Out of stock
Description

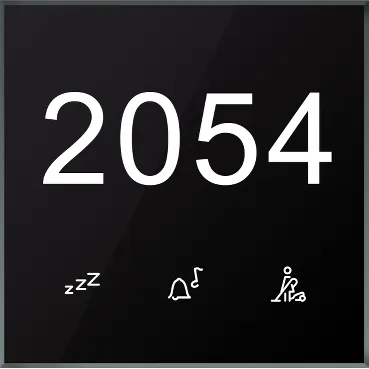

The Schneider Electric LSSMDN01NS SpaceLogic Glass Touch Panel is an elegant and intuitive door panel solution for hotels, designed to provide a premium guest experience while offering flexible customization options. Featuring a high-quality glass finish and configurable touchscreen, it allows hotels to reflect their unique branding with tailor-made icons, labels, or even logos.
This panel communicates via Modbus serial RS-485, integrating seamlessly with hotel room controllers for centralized management of functions such as room status, bell signaling, and guest presence. With up to five LED backlight colors and four elegant glass finishes (black, white, champagne gold, silver), the panel blends seamlessly into any interior. Snap-in magnetic mounting ensures easy installation and a clean, flush appearance. Certified to UL, CE, RCM, and EAC standards, the LSSMDN01NS panel is a reliable and sustainable solution for modern hotel environments.
Specifications
| Category | Details |
|---|---|
| Product Reference | LSSMDN01NS |
| Product Name | Glass Touch Panels |
| Product Type | Door panel with configurable touchscreen |
| Range | SpaceLogic |
| Device Application | Hotel, Monitoring, Signalling, Bell Switch |
| Control Button Type | 1 configurable touch button (bell) |
| Local Signalling | 2 × configurable indicator lights |
| Marking | Room number |
| Communication Protocol | Modbus serial with RS485 port(s) |
| [Us] Rated Supply Voltage | 24 V DC |
| Current Consumption | 30 mA |
| Mounting Mode | Magnetic, Snap-in |
| Customization Options | Hotel logo, tailor-made icons, labels |
| Glass Colors | Black, White, Champagne Gold, Silver (other colors on request) |
| Backlight Colors | 5 LED colors available |
| Height | 105 mm (standard) / 95 mm (optional) |
| Width | 105 mm (standard) / 95 mm (optional) |
| Depth | 33 mm (standard) / 33 mm (optional) |
| Weight | 0.30 kg |
| Certifications | UL, CE, RCM, EAC |
| Enclosure | Glass front panel |
| Functionality | Door bell, room number display, configurable touch interface |
| Installation | Snap-in magnetic mounting |
Additional information
| Weight | 0.3 kg |
|---|
