Description

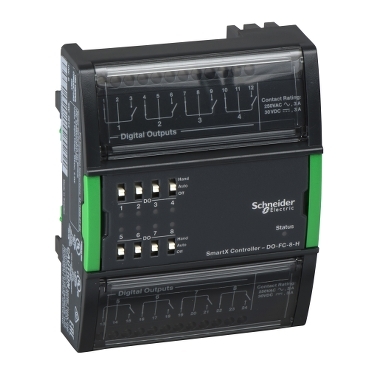

The SpaceLogic DO-FC-8-H I/O Module – SXWDOC8HX10001 expands the functionality of SpaceLogic AS-P servers by providing eight digital Form C outputs. Each channel is designed for direct load applications and supported with integrated Hand/Off/Auto switches, enabling manual override where required.
This expansion module connects directly to the AS-P server via terminal bases, with the flexibility to add up to 32 modules per system. Its hot-swappable and hot-connectable design ensures uninterrupted operation during installation or maintenance, while plug-in sub-base connections simplify setup.
Built with durable flame-retardant ABS+PC housing, this compact module (64 × 90 × 114 mm, 0.209 kg) offers IP20 protection and is certified to CE, FCC, ICES, and RCM standards. Designed for reliable integration into EcoStruxure Building Operation, it delivers scalability, compliance, and efficient performance.
Specifications
| Attribute | Details |
|---|---|
| Part Number | SXWDOC8HX10001 |
| Range | EcoStruxure Building Operation |
| Product Brand | Schneider Electric |
| Product Name | I/O Modules |
| Device Short Name | DO-FC-8-H |
| Product Type | I/O Module |
| Application | Digital output expansion |
| Discrete Output Number | 8 |
| Discrete Output Type | Relay, Form C |
| Discrete Input Voltage | 24 V |
| Power Consumption | 2.2 W |
| Mounting Support | DIN rail, Wall |
| Electrical Connection | Plug-in sub-base |
| Control Type | Integrated switch (Hand/Off/Auto) |
| Local Signalling | LED (green) relay energised |
| Operating Temperature | 0…50 °C |
| Storage Temperature | -20…70 °C |
| Relative Humidity | 0…95% non-condensing |
| Operating Distance | Direct connection via TB-IO-W1 terminal base |
| Range Compatibility | EcoStruxure Building Operation TB-IO-W1 |
| Standards | UL 864, UL 916, FCC CFR 47 part 15 |
| Certifications | ICES-003, FCC part 15 class B, CE, RCM |
| Protection | IP20 |
| Material | ABS + PC |
| Flame Retardance | UL94V0-5VB |
| Length (mm) | 64 |
| Width (mm) | 90 |
| Height (mm) | 114 |
| Weight (kg) | 0.209 |
