Description

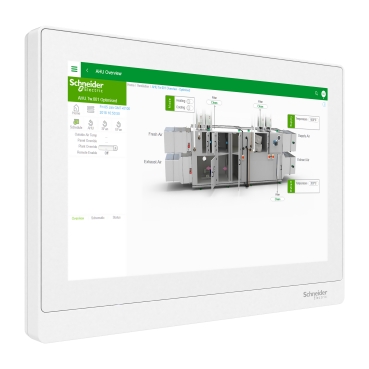

The SpaceLogic Advanced Display V3 is an advanced Human-Machine Interface (HMI) designed to provide local access and control for EcoStruxure Building Management Systems (BMS). The bundle includes the HMI device, cable fitting with nut, and earth ground screw with washer, ensuring convenient installation and secure mounting in control cabinets.
The display can be locked to applications such as EcoStruxure Building Operation WebStation, creating a dedicated interface for operating and monitoring building automation systems locally. This enables users to easily access BMS servers and manage system operations directly from an HMI terminal installed on a control cabinet.
Built on an Android 8.1 operating system, the device features a 10.1-inch high-resolution touchscreen (1280 × 800 pixels) that delivers clear visuals and responsive interaction. The panel-mounted design allows seamless integration into control cabinets, making it ideal for professional building automation environments.
The unit is constructed with UL94 V-0 flame-retardant plastic and an IP54 ingress protection rating, ensuring durability and protection in demanding control environments. With compact dimensions and reliable performance, the SpaceLogic Advanced Display V3 provides an efficient interface for monitoring and controlling smart building systems.
Specifications
| Feature | Specification |
|---|---|
| Product Name | SpaceLogic Advanced Display V3 |
| Product or Component Type | HMI (Human-Machine Interface) |
| Operating System | Android 8.1 |
| Display Size | 10.1 in (255 mm) |
| Resolution | 1280 × 800 pixels |
| Device Application | EcoStruxure Building Management System Interface |
| Mounting Mode | Panel Mounted |
| Current Consumption | 1.27 A |
| Flame Retardance | UL94-V0 |
| Ingress Protection | IP54 |
| Product Certifications | CE, FCC, UL 60950, RCM |
| Height | 195.6 mm |
| Width | 258 mm |
| Depth | 25 mm |
| Embedding Depth | 15.2 mm |
| Net Weight | 0.933 kg |
| Bundle Weight | 1.333 kg |
