Description

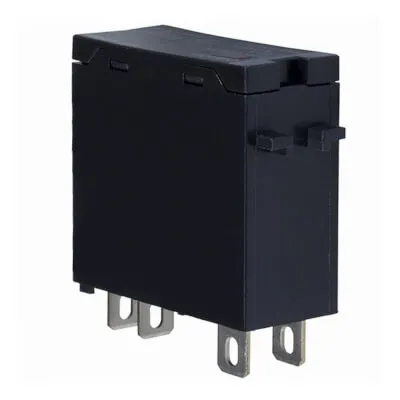

The Omron G3R-ODX02SN-UTU is a compact solid-state relay (SSR) designed for reliable switching of DC loads up to 60 V at 2 A. Featuring a 5–24 VDC input control range, it ensures compatibility with a wide variety of sensor and control circuits.
Engineered with plug-in terminals for easy installation, this SSR also includes a built-in operation indicator for quick status monitoring. With I/O dielectric strength of 4,000 V, it provides safe isolation and meets the requirements of VDE 0884.
Certified by UL, CSA, and TUV, the G3R-ODX02SN-UTU delivers reliable performance in industrial automation, I/O applications, and control systems where high dielectric strength and compact design are essential.
Specifications
| Category | Details |
|---|---|
| Manufacturer | Omron |
| Model | G3R-ODX02SN-UTU |
| Product type | Solid-state relay (SSR) |
| Output type | DC load switching |
| Rated output current | 2 A |
| Output operating voltage | 4–60 VDC |
| Control supply voltage (DC) | 5–24 V |
| Number of phases | 1 |
| Connection type | Plug-in (5-pin) |
| Indicators | Operation LED |
| Dielectric strength | 4,000 V (I/O isolation) |
| Modular version | Yes |
| Certifications | UL, CSA, TUV, VDE 0884 compliant |
| ETIM Class | Solid state relay |
| ETIM Group | Relays |
| Dimensions | Compact plug-in design |
| Weight | 0.018 kg |
