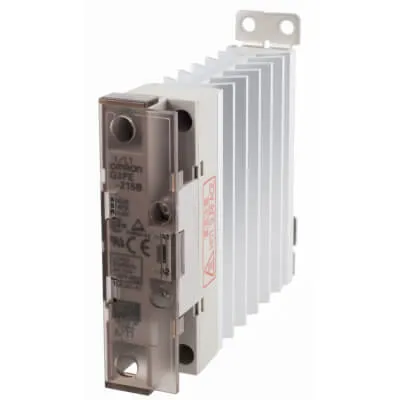

Solid State Relay – G3PE-215B DC12-24
Omron G3PE-215B Solid State Relay, 1-phase, 15 A, 100–240 VAC output, 12–24 VDC control, with heat sink, DIN rail/screw mount.
Original price was: $187.03.$177.25Current price is: $177.25.
(Save $9.78)
In stock
Description
The Omron G3PE-215B is a high-performance solid state relay (SSR) designed for reliable ON/OFF control of resistive loads such as heaters. With a rated operational current of 15 A at 100–240 VAC, it ensures stable performance while minimizing wear and tear compared to mechanical relays.
Built with a DIN rail or screw mount option and an integrated heat sink, the G3PE-215B offers flexible and efficient installation. Its phototriac isolation and zero-crossing switching provide enhanced durability and reduced electrical noise, making it ideal for industrial automation and temperature control applications.
Engineered for harsh environments, it operates reliably within a wide temperature range of -30 °C to +80 °C, and supports up to 3 kW heater capacity for resistive loads. Compact yet powerful, this SSR is a dependable solution for demanding control tasks.
Specifications
| Category | Details |
|---|---|
| Application | ON/OFF control |
| Number of phases | 1 |
| Number of poles | 1 |
| Mounting method | DIN rail / screw |
| Terminal type | Screw |
| Rated operational voltage (AC) | 100–240 V |
| Operating voltage range (AC) | 75–264 V |
| Rated operation current (AC-1) | 15 A |
| Permissible I²t value | 121 A²s |
| Applicable heater capacity (AC-1) | 3 kW (resistive load) |
| Supply voltage (DC) | 12–24 V |
| Control current (max.) | 10 mA |
| Must operate voltage (max.) | 9.6 V |
| Must release voltage (min.) | 1 V |
| Isolation | Phototriac |
| Switching type | Zero-crossing |
| Operating temperature range | -30 °C to +80 °C |
| Product height | 100 mm |
| Product width | 22.5 mm |
| Product depth | 100 mm |
| Weight | 0.218 kg |
| Communication ports | None |
Additional information
| Weight | 0.218 kg |
|---|---|
| Dimensions | 100 × 22.5 × 100 mm |
