Description

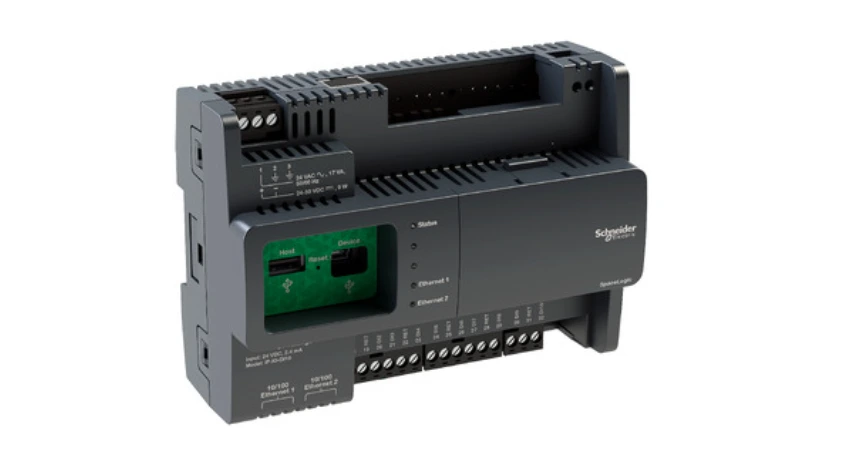

The SpaceLogic IP-IO-DI10 from Schneider Electric is a high-performance IP-based I/O expansion module designed to extend and enhance HVAC applications and building automation systems using BACnet/IP communication.
Built with a B-ASC device profile, the module allows seamless sharing of I/O resources across SpaceLogic servers, SpaceLogic IP controllers, or third-party systems, ensuring flexible integration and interoperability. With local alarms and local trend logs, it reduces unnecessary network traffic while maintaining reliable, real-time performance.
Supporting open communication protocols, the IP-IO-DI10 simplifies device configuration, IP addressing, and management. It also supports an optional display for quick on-site insight and control of input/output points.
The IP-IO-DI10 model features 10 digital inputs, making it ideal for a wide range of control applications. Its DIN rail or panel-mounted design and 24 V AC/DC power compatibility ensure easy installation in various system environments.
Engineered for reliability, this module features robust construction, low power consumption, and advanced memory capacity — all certified under CAN/CSA C22.2 No. 24 standards. Perfect for smart building and HVAC professionals who need scalable, efficient, and connected I/O solutions.
Specification
| Feature | Description |
|---|---|
| Product Name | SpaceLogic IP-IO-DI10 |
| Brand | Schneider Electric |
| Product Type | I/O Expansion Module |
| Device Short Name | IP-IO-DI10 |
| Range | SpaceLogic |
| Application | HVAC and Building Automation |
| Communication Protocol | BACnet/IP |
| Device Profile | B-ASC |
| Number of Inputs | 10 Digital Inputs |
| Communication Ports | 2 × RJ45 (Ethernet 10/100BASE-TX), 1 × USB Type A, 1 × Mini-B USB Device Port |
| Memory | 32 MB Flash, 128 MB RAM |
| Backup Time | 7 Days |
| Clock Drift | ±1 min/month |
| Power Consumption | 9 W / 17 VA |
| Rated Supply Voltage | 24 V AC ±20%, 24–30 V DC, 21–33 V DC |
| Mounting Mode | DIN Rail or Panel Mounted |
| Dimensions (H × W × D) | 110 mm × 153 mm × 64 mm |
| Ambient Operating Temperature | 0…50 °C |
| Storage Temperature | -20…70 °C |
| Relative Humidity | 0–95% RH, non-condensing |
| Standards Compliance | CAN/CSA C22.2 No. 24 |
| Optional Features | Local Display for I/O Control |
| Unit Type of Package 1 | PCE |
| Number of Units per Package | 1 |
| Package Dimensions (H × W × L) | 16.8 cm × 12.4 cm × 7 cm |
| Package Weight | 380 g |
