Description

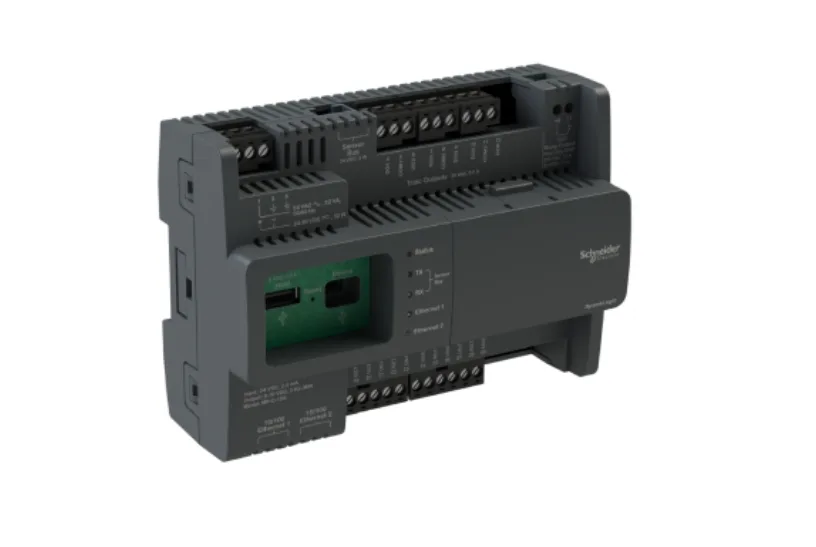

The SpaceLogic MP-C-18B Controller from Schneider Electric is a versatile, high-performance field controller optimized for HVAC applications in modern building automation systems. Built on the EcoStruxure™ platform, it supports BACnet/IP communication, allowing it to function either as a standalone controller or as part of a larger EcoStruxure Building Management System (BMS) with AS-P, AS-B, or Enterprise Servers.
This controller provides 10 Universal I/O (Ub) points and 8 digital Triac outputs, ensuring flexibility for a wide range of control strategies. It also supports up to three SpaceLogic IP-IO Expansion Modules, allowing scalability to meet complex application requirements.
The MP-C-18B features Rapid Spanning Tree Protocol (RSTP) for reliable network topology and enhanced fault tolerance. An optional display module provides real-time visualization and control of I/O points, making installation, commissioning, and troubleshooting more efficient.
Ideal for plant room automation, AHU control, and energy management, the MP-C-18B ensures smarter, more efficient, and connected building operations.
Specifications
| Category | Specification |
|---|---|
| Product Range | SpaceLogic |
| Product Type | Field Controller |
| Model | MP-C-18B |
| Product Brand | Schneider Electric |
| Communication Protocol | BACnet/IP |
| Device Profile | B-AAC |
| I/O Configuration | 10 Universal I/O (Ub), 8 Digital Triac Outputs |
| I/O Expansion Modules Supported | Up to 3 |
| Network Topology | Star, Daisy Chain |
| Network Protocol Support | Rapid Spanning Tree Protocol (RSTP) |
| Optional Features | Local display for I/O monitoring and control |
| Mounting Type | DIN Rail |
| Product Width | 153 mm |
| Package Type | PCE |
| Units per Package | 1 |
| Package Height | 7.0 cm |
| Package Width | 12.4 cm |
| Package Length | 16.3 cm |
| Package Weight | 417 g |
