Description

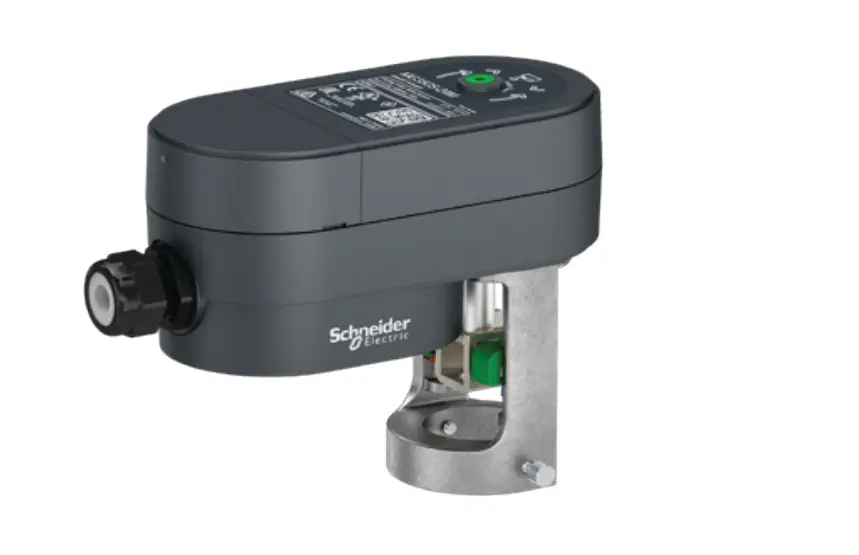

The MG350S-24F Globe Valve Actuator from Schneider Electric’s SmartX Actuator family delivers efficient and accurate valve control for Satchwell VZX and MZX two-way and three-way linear globe valves.
Designed for smaller HVAC applications such as mixing and injection heating circuits, small air handling units, and large fan coil systems, the MG350S-24F provides dependable two-position or floating control with a 24 V AC/DC supply.
Its compact design and nominal thrust of 350 N make it suitable for systems where moderate force and speed are required. The actuator operates with a full stroke time of 100 seconds and a maximum stroke of 16.5 mm, ensuring smooth and precise valve movement.
With low power consumption (only 3.5 W) and robust construction, the MG350S-24F provides an excellent balance between performance, efficiency, and durability for commercial building control systems.
Specification
| Category | Details |
|---|---|
| Brand | Schneider Electric |
| Product Family | SmartX Actuator Series |
| Product Type | Electro-mechanical Actuator |
| Model | MG350S-24F |
| Application | For Satchwell VZX and MZX two-way and three-way linear globe valves |
| Control Type | 2-position / 3-point floating |
| Supply Voltage | 24 V AC/DC ±20%, 50/60 Hz |
| Power Consumption (Running) | 3.5 W |
| Transformer Sizing | 5 VA |
| Running Time | 8 s/mm (Full stroke time 100 s for VZX, MZX) |
| Maximum Stroke | 16.5 mm |
| Nominal Force | 350 N |
| Suitable Applications | Mixing & injection heating circuits, small AHUs, large fan coils |
| Weight (Shipping) | 0.620 kg |
