Description

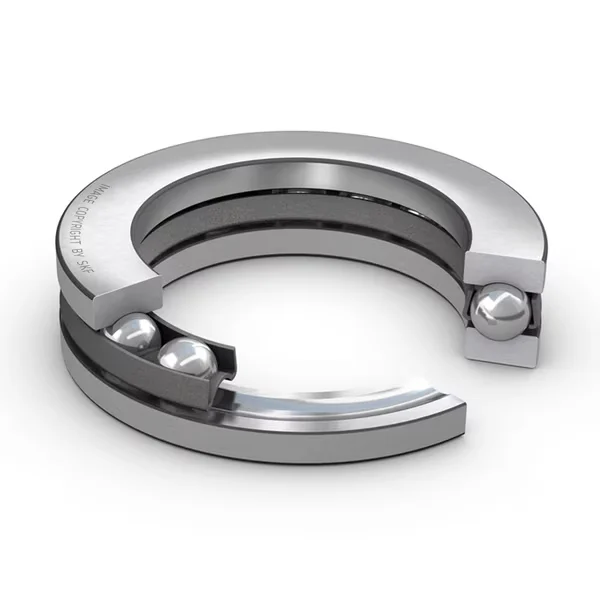

The SKF 51107 thrust ball bearing is designed to accommodate axial loads in one direction, making it suitable for applications where precise axial positioning and high load capacity are required. It cannot sustain radial loads. Its separable design allows easy mounting, dismounting, and inspection, which reduces downtime and simplifies maintenance.
The ground bore of the shaft washer enables an interference fit for reliable operation. Manufactured from high-grade bearing steel with a sheet metal cage, this bearing provides consistent durability, interchangeable components for cost-effective replacement, and dependable performance at high speeds.
Specifications
| Attribute | Value |
|---|---|
| Part Number | 51107 |
| Category | Thrust Ball Bearing |
| Bearing Type | Single Direction |
| Bore Diameter | 35 mm |
| Outside Diameter | 52 mm |
| Height | 12 mm |
| Basic Dynamic Load Rating (C) | 19.9 kN |
| Basic Static Load Rating (C0) | 51 kN |
| Reference Speed | 5 600 r/min |
| Limiting Speed | 7 500 r/min |
| Axial Load Capability | Single-direction |
| Number of Rows | 1 |
| Cage Material | Sheet metal |
| Housing Washer Type | Flat |
| Tolerance Class | Normal |
| Bearing Material | Bearing steel |
| Coating | Without |
| Product Net Weight | 0.0829 kg |
| Indicative Carbon Footprint (Manufacture) | 0.298 kg CO₂e |
| eClass Code | 23-05-10-01 |
| UNSPSC Code | 31171507 |
| Key Features | Separable design, Interchangeable components, Interference fit shaft washer, Reliable axial load performance |
