Description

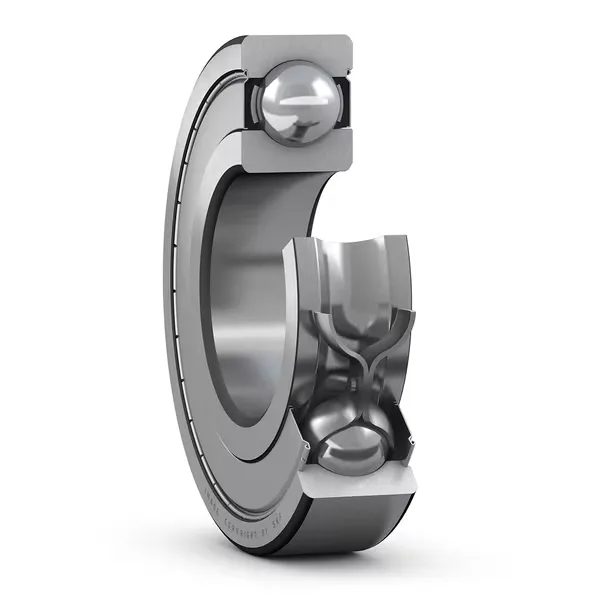

The SKF W 6206-2Z is a stainless steel, single-row deep groove ball bearing designed for applications requiring both durability and corrosion resistance.
Featuring shields on both sides, it provides effective protection against contaminants while retaining lubricant for extended service life. Its stainless steel construction ensures excellent resistance to moisture, chemicals, and harsh environments, making it suitable for food processing, marine, and other demanding industries.
Like all SKF deep groove ball bearings, it combines low friction, optimized geometry for high-speed operation, and quiet running performance. Easy to mount and maintenance-free, this bearing offers a cost-effective, reliable solution for both radial and axial load applications.
Specification
Attribute | Value |
---|---|
Part Number | W 6206-2Z |
Category | Deep Groove Ball Bearing |
Bearing Type | Single Row |
Bore Diameter | 30 mm |
Outside Diameter | 62 mm |
Width | 16 mm |
Basic Dynamic Load Rating (C) | 16.5 kN |
Basic Static Load Rating (C0) | 11.2 kN |
Reference Speed | 26 000 r/min |
Limiting Speed | 13 000 r/min |
Filling Slots | Without |
Number of Rows | 1 |
Outer Ring Locating Feature | Without |
Bore Type | Cylindrical |
Cage Material | Sheet metal |
Matched Arrangement | No |
Radial Internal Clearance | CN |
Bearing Material | Stainless steel |
Coating | Without |
Sealing | Shields on both sides |
Sealing Type | Non-contact |
Lubricant | Grease |
Relubrication Feature | Without |
Indicative Carbon Footprint (Manufacture) | 0.698 kg CO₂e |
Product Net Weight | 0.194 kg |
eClass Code | 23-05-08-01 |
UNSPSC Code | 31171504 |
Key Features | Stainless steel corrosion resistance, High-speed capability, Low friction, Quiet running, Maintenance-free with shielded protection |
